제품 상세 설명

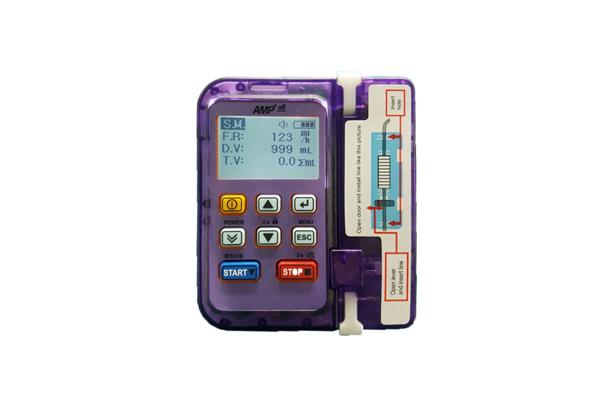

Feeding pump (PP_9900)



Light, Portable, Easy to use




Features

Self testingEvery time the unit turns on, self testing is proceeded
K.T.O (Keep Tube Open)When the delivery volume has been reached, flow rate turns into K.T.O rate automatically (adjustable from 0.1ml/h ~0.9ml/h)
Keypad lock functionKeypad is locked with or without password depend on its using condition
Infusion setupFlow rate / Delivery volume
Buzzer / Occlusion level3 steps / 3 steps (4psi ~ 20psi)
BolusON/OFF, Adjustable (1~ 30ml/h)
History call backDisplay up to last 15 infusion data
Data saving years5 years
Strengthen safetyDouble CPU stop on error
Avoiding Free Flow
Recharge battery
Battery recharging time4 hours
Recharge battery4 hours (25ml/h)







.

Specification

Flow rate0.1 ~250ml/hBolus rate0.1~ 60ml/h
Delivery Volume0.1~ 999.9ml (in 0.1ml increments)K.T.O0.1ml/h~ 0.9ml/h
Occlusion time1 ~ 999min (+/- 1min)Accuracy+/- 3%
MethodPeristalsisOcclusion4psi ~ 20 psi (3 steps)
AlarmOcclusion, Air in line, Door open, Stand by K.T.O (Infusion completion), System Error, Low battery, Device malfunction, Free flow (optional)
OptionEvent, History call back, RS 232 connection
PowerAC 100~240 V~ / 50~60Hz, Battery : 7.4V, ClassⅠType CF
Operating conditionTemperature 5~45℃, Humidity 90% or less
Storage conditionTemperature -20 ~ 60℃, Humidity 95% or less
