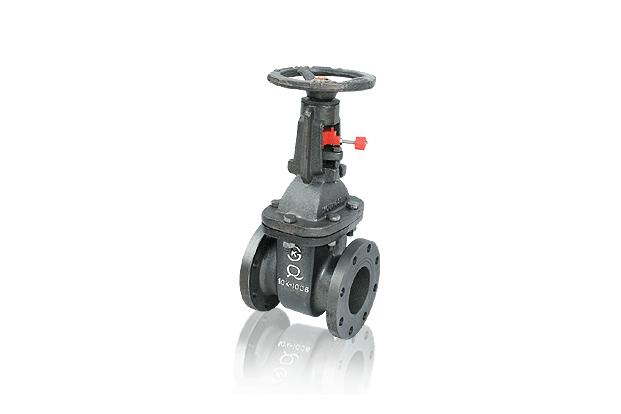

Flanged Out Side Gate Valves (S/W)
Model Name
-
Series
OS & Y Valve
View All
Data
-
Manufacturer information
provider logo
YOUNGSHIN

Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more

Problem with product info?
Update request
Manufacturer
YOUNGSHIN
Product Type
Machine
Brand
-
SKU
83656
Product Name
Flanged Out Side Gate Valves (S/W)
Model Name
-
Size
-
Weight
-
Product Details

Basis Name Components

NO NOMENCLATURE
1.2.4 Body Bonnet Yoke
6.7 Body & Disc Ring
8 Yoke sleeve
10 Stem
ⓐ Limit or tamper
Electric Ratings DC 24V. 6A
AC 250V. 5A







Micro Switch(interior)  Circuit













Features

The TAMPER SWITCH is installed, which shall be displayed on the monitoring control panel of SPRINKLER facilities, etc. pursuant to Article 17 Section 9 of the Rules for Firefighting Technology.



Switch Application

A : Limit Switch

Interface terminal Indicator Panel Valve Condition
①, ② Close Lamp
Light Alarming		 Valve Close or Unstable
③, ④ Open LAMP Light Valve Completely Open



B : Tamper Switch

Interface terminal Indicator Panel Valve Condition
Black Close Lamp Light
Light Alarming		 Valve Close or Unstable
Red Open LAMP Light Valve Completely open





Dimension

SIZE H D C d D₁ a t L
50 365 155 120 50 200 7 20 180
65 425 175 140 65 200 8 22 190
80 490 185 150 80 224 8 22 200
100 575 210 175 100 250 10 24 230
125 685 250 210 125 280 11 24 250
150 795 280 240 150 300 13 26 270
200 1000 330 290 200 355 15 26 290
250 1210 400 355 250 400 17 30 330
300 1420 445 400 300 450 19 32 350

Unit:mm
