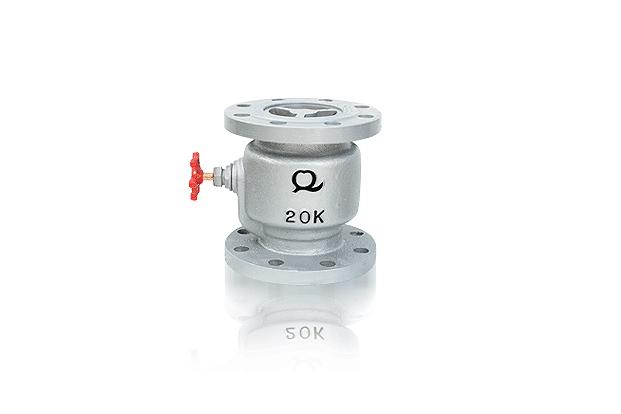

Flanged Life Check Valve (Cast Steel)
Model Name
-
Series
Life Check Valve
View All
Data
-
Manufacturer information
provider logo
YOUNGSHIN

Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more

Problem with product info?
Update request
Manufacturer
YOUNGSHIN
Product Type
Machine
Brand
-
SKU
130894
Product Name
Flanged Life Check Valve (Cast Steel)
Model Name
-
Size
-
Weight
-
Product Details
WORKING PRESSURE 20KGf/cm²
TEST PRESSURE BODY 30KGf/cm²
SEAT 25KGf/cm²





SPECIFICATIONS

APPLICABLE FLUID : Water, Air, Other Applied Fluid

PRESSURE : 20KGf/㎠

TEMPERATURE : 60℃



NO NAME OF PARTS NO NAME OF PARTS
1 BODY (GCD450) 11 SET SCREW
2 BODY SEAT RING 12 DISC LOCK NUT
3 DISC 13 SET SCREW
4 DISC SEAT (네오프렌) 14 ADJUSTING SPRING
5 BOTTOM GUIDE 15 BYPASS BUSHING
6 STEM 16 BYPASS SEAT
7 BUFFER RING 17 BYPASS VALVE
8 TOP GUIDE 18 PACKING NUT
9 NUT 19 O-RING
10 SPLIT PIN 20 HANDLE









DIMENSION

Unit : mm

SIZE FLANGE CODE KS B 1511 20KGf/cm²
d D C g f t n-Øh E L
40 40 140 105 85 2 22 4-19 160 162
50 50 155 120 100 2 22 8-19 165 183
65 65 175 140 120 2 24 8-19 185 200
80 80 200 160 135 2 26 8-23 195 210
100 100 225 185 160 2 28 8-23 280 217
125 125 270 225 195 2 30 8-25 330 255
150 150 305 260 230 2 32 12-25 350 280
200 200 350 305 275 2 34 12-25 400 416
250 250 430 380 345 2 38 12-27 470 565
300 300 480 430 395 3 40 12-27 485 620
350 350 540 480 440 3 40 16-33 425 620
400 400 605 540 495 3 46 16-33 500 825
450 450 675 605 560 3 48 20-23 540 955
500 500 730 660 615 3 50 20-23 700 1100

※ Over 300Ø product is produced to order.
