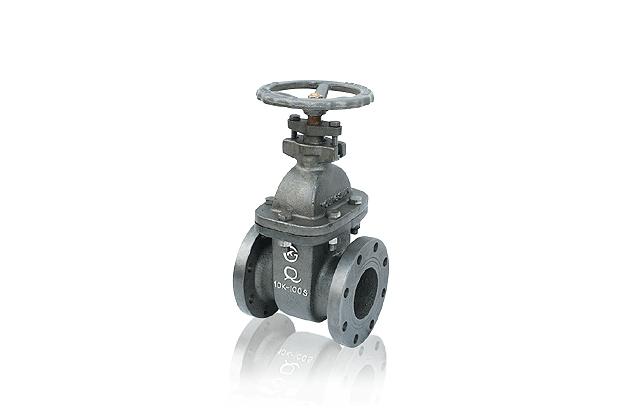

Flanged Inner Threads Gate Valve (Cast iron 10K)
Model Name
-
Series
NRS Valve
View All
Data
-
Manufacturer information
provider logo
YOUNGSHIN

Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more

Problem with product info?
Update request
Manufacturer
YOUNGSHIN
Product Type
Machine
Brand
-
SKU
130886
Product Name
Flanged Inner Threads Gate Valve (Cast iron 10K)
Model Name
-
Size
-
Weight
-
Product Details
Applicable fluid Water, Liquid
Working Pressure 10KGf/cm²
Test Pressure Body 21KGf/cm²
Seat 15.4KGf/cm²
Applicable Temperature Max. 120℃


























NO PART MATERIAL
1 BODY CAST IRON (GC200)
2 BONNET CAST IRON (GC200)
3 PACKING BOX CAST IRON (GC200)
4 DISC CAST IRON (GC200)
5 DISC SEAT RING BRONZE (CAC406)
6 BODY SEAT RING BRONZE (CAC406)
7 HANDLE WHEEL CAST IRON (GC200)
8 PACKING GLAND

MALLEABLE (BMC28)

IRON OR STEEL (SS400)
9 STEM BRASS (C3771BE), STS (STS420)
10 STEM BUSH BRONZE (CAC406)
11 BONNET BOLT STEEL (SS400)
12 STUD BOLT FOR PACKING BOX STEEL (SS400)
13 GLAND BOLT STEEL (SS400)
14 BONNET NUT STEEL (SS400)
15 STUD NUT FOR BOX STEEL (SS400)
16 GLAND NUT STEEL (SS400)
17 HANDWHEEL NUT STEEL (SS400)
18 PACKING JIC6030
19 GASKET NON-ASBESTOS
20 GASKET NON-ASBESTOS
21 WASHER STEEL (SS400)





DIMENSION

SIZE H D d D₁ a t L
50 300 155 50 200 7 20 180
65 330 175 65 200 8 22 190
80 380 185 80 224 8 22 200
100 430 210 100 250 10 24 230
125 490 250 125 280 11 24 250
150 560 280 150 300 13 26 270
200 650 330 200 355 15 26 290
250 770 400 250 400 17 30 330
300 885 445 300 450 19 32 350

Unit : mm
