product Image

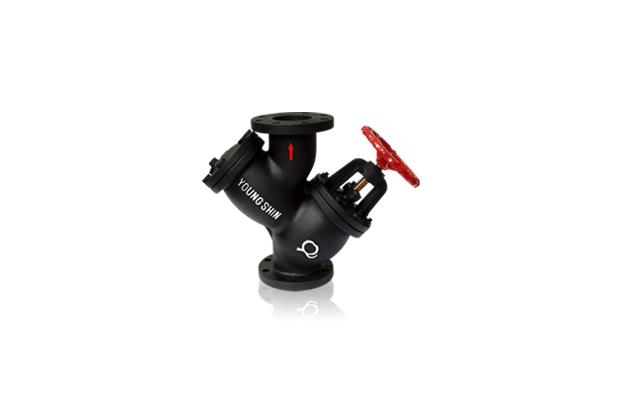

Globe-Strainer Valve
Model Name
-
Series
Globe-Strainer Valve
View All
Data
-
Manufacturer information
provider logo
YOUNGSHIN

Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more

Problem with product info?
Update request
Manufacturer
YOUNGSHIN
Product Type
Machine
Brand
-
SKU
130890
Product Name
Globe-Strainer Valve
Model Name
-
Size
-
Weight
-
Product Details
APPLICABLE FLUID Water, Liquid
WORKING PRESSURE 10KGf/cm²
TEST PRESSURE BODY 21KGf/cm²
SEAT 15.4KGf/cm²
APPLICABLE TEMPERATURE MAX. 120℃






NO NAME OF PARTS MATERIAL
1 BODY GC200
2 G COVER GC200
3 DISC GC200
4 S COVER GC200
5 HANDLE GC200
6 PACKING GLAND CAC406
7 STEM C3771BE
8 BODY SEAT RING CAC406
9 DISC SEAT RING CAC406
10 DISC PACKING  PTFE
11 DISC STOPPER CAC406
12 YOKE SLEEVE CAC406
13 STEM NUT C3771BE
14 COVER BOLT SS400
15 G GOVER NUT SS400
16 G GASKET ASBESTOS
17 G GASKET ASBESTOS
18 S COVER BOLT SS400
19 PLUG CAC406
20 HANDLE NUT CAC406
21 YOKE NUT CAC406
22 PACKING ASBESTOS
23 GLAND SEAT CAC406
24 STRAINER SCREEN STS304
25 GLAND BOLT SS400
26 GLAND NUT SS400





FEATURES

1. With a valve suitable for the fire line, the Bonnet section is O.S. & Y. operation of the Tamer Switch depending on the opening and closing conditions can be checked in the reception area and the opening and closing can be checked by the amount of the valve stand raised.

2. Suit powder coating products suitable for drinking water line are also produced.(Order specification)







DIMENSION

SIZE D C d a n-Øh t L
50 155 120 50 8 4XØ19 22 290
65 175 140 65 8 4XØ19 22 322
80 185 150 80 8 8XØ19 22 366
100 210 175 100 11 8XØ19 24 429
125 250 210 125 12 8XØ23 24 478
150 280 240 150 14 8XØ23 26 559
200 330 290 200 16 12XØ23 26 677

Unit : mm
