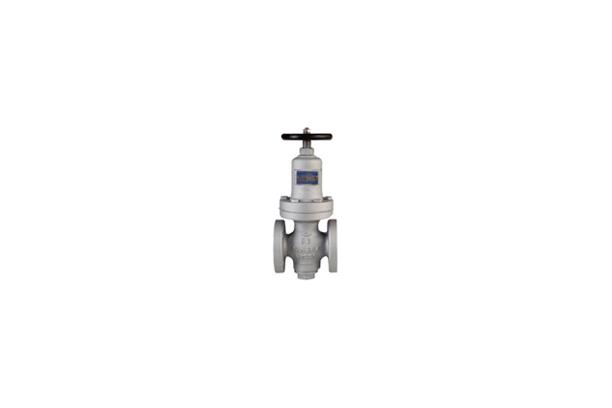

REDUCING VALVE : RDD-3F
- This is the direct operated pressure reducing valve for high pressure service line which is required to stable operation.
- The upper handle can adjust pressure easily.
- You can check inside of this as disassembly of only upper side.
SPECIFICATION
Category | Content | ||
TYPE | DIRECT (DIAPHRAGM) | ||
Fluid | Air / Water / Liquid | ||
Meterial | Body | SC480 / Stainless steel | |
Seat | Stainless steel | ||
Disc | Synthetic Rubber | ||
Design Pressure | Inlet | 33kgf/cm2 | 3.3 MPa |
Outlet | 0.5~10kgf/cm2 | 0.05~1.0 MPa | |
Design temperature | 80︒C | ||
Connection Code | JIS B2220, ANSI B16.5, DIN2511 FLANGE | ||
Max Reducing Ratio | 10 : 1 |
DIMENSION
SIZE | L | H | H1 |
15A | 145 | 290 | 77 |
20A | 145 | 290 | 77 |
25A | 150 | 290 | 77 |
32A | 180 | 290 | 90 |
40A | 180 | 320 | 90 |
50A | 180 | 320 | 90 |
