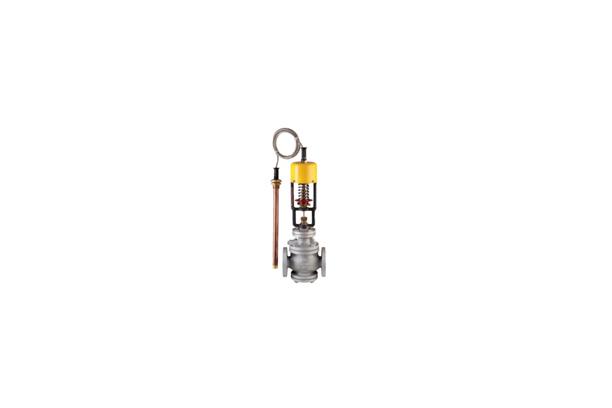

TEMPERATURE REGULATING VALVE : TYR-1F
- This is the temperature control valve of pilot type that has large valve capacity.
- This can be used in the equipment of large differential pressure.
- This is suitable for such as large size storage tank, heat exchanger.
- This does not need pneumatic or electricity power.
SPECIFICATION
Category | Content | ||
TYPE | PILOT | ||
Fluid | STEAM | ||
Meterial | Body | FCD450, SC480 | |
Trim | Stainless steel, Cast Bronze | ||
Design Pressure | 10kgf/cm2 Less than | 1.0 Mpa Less than | |
Design temperature | 100︒C | ||
Connection Code | JIS B2220 , ANSI B16.5, DIN2511 FLANGE | ||
Basic Accessory | Heat Sensor | ||
DIMENSION
SIZE | L | H1 | H2 |
15A | 165 | 490 | 75 |
20A | 165 | 490 | 75 |
25A | 170 | 490 | 75 |
32A | 200 | 500 | 85 |
40A | 200 | 500 | 85 |
50A | 220 | 510 | 92 |
65A | 250 | 530 | 110 |
80A | 290 | 555 | 130 |
100A | 320 | 570 | 150 |
