Product Name
Air Trap
Model Name
TAT-1S
Size
-
Weight
-
Product Details

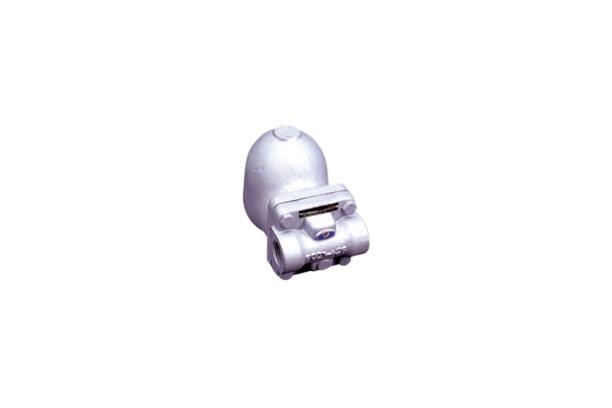

38AIR TRAP : TAT-1S
- This valve prevent the loss of the compressed air by discharging the compensate water.
- This can be maintain easily because of the simple structure.
SPECIFICATION
Category | Content | ||
TYPE | BALL FLOAT | ||
Fluid | Air | ||
Meterial | Body | FCD450 | |
Trim | Stainless steel | ||
Design Pressure | 10kgf/cm2 Less than | 10 Mpa Less than | |
Design temperature | 100︒C | ||
Connection Code | JIS B0203 THREAD | ||
DIMENSION
SIZE | L | H | H1 | d(PT) |
15A | 120 | 120 | 155 | 1/2" |
20A | 120 | 120 | 155 | 3/4" |
25A | 120 | 120 | 155 | 1" |
