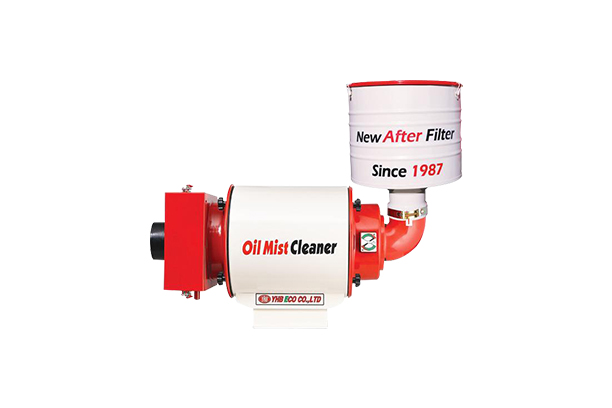

YOC F-TYPE (Non-water soluble)_Oil mist collector

Feature

Chip separator is mounted(glass filter)
Notification of filter change interval through air flow meter
Maintenance of high dust collection efficiency through periodic filter replacement

Specification

MODEL	YOC-300F	YOC-350F	YOC-400F	YOC-420F
POWER	3Phase 220V / 380V / 440V (50/60Hz)
Motor(Kw)	0.4	0.75	1.5	2.2
Ampere(A)	1.7/1.0/0.8	3.5/2.0/1.6	6.5/3.7/3.3	8.5/4.9/4.2
RPM	3450
Wind Flow Rate(㎥/min)	5	10	20	25
Static Pressure(mmAq)	90	120	170	180
Noise(dB)	65±2	68±2	70±2	70±2
Collection Rate(%)	99.8%
inlet, Outlet(Ø)	100	125	150	150
Weight(kg)	30	37	64	67
Filter Material	POLYESTER

* Installation of filter decreases the air flow by about 8%.
* The above specification is based on 60Hz. When 50Hz is applied, the air flow volume decreases by about 20%.

MODEL	A	B	C	D	E	F	G	H	I	J
YOC-300F	320	409	180	220	210	240	Ø100	322	800	275
YOC-350F	365	454	180	220	210	240	Ø125	370	895	345
YOC-400F	452	595	280	320	360	400	Ø150	480	1058	379
YOC-420F	452	595	280	320	360	400	Ø150	480	1058	379
