Description

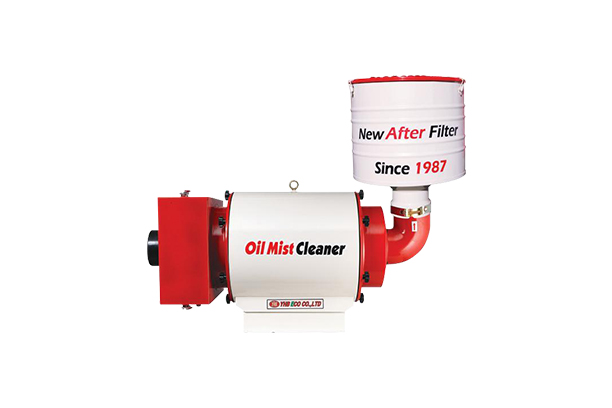

YOC TYPE (Non-water soluble)_Oil mist collector
Feature
- Chip separator is mounted(glass filter)
- Maintains high dust collection efficiency by collecting chips and mist primarily
Specification
|
MODEL |
YOC-300 |
YOC-350 |
YOC-400 |
YOC-420 |
|
POWER |
3Phase 220V / 380V / 440V (50/60Hz) |
|||
|
Motor(Kw) |
0.4 |
0.75 |
1.5 |
2.2 |
|
Ampere(A) |
1.7/1.0/0.8 |
3.5/2.0/1.6 |
6.5/3.7/3.3 |
8.5/4.9/4.2 |
|
RPM |
3450 |
|||
|
Wind Flow Rate(㎥/min) |
5 |
10 |
20 |
25 |
|
Static Pressure(mmAq) |
90 |
120 |
170 |
180 |
|
Noise(dB) |
65±2 |
68±2 |
70±2 |
70±2 |
|
Collection Rate(%) |
99.8% |
|||
|
inlet, Outlet(Ø) |
100 |
125 |
150 |
150 |
|
Weight(kg) |
30 |
37 |
64 |
67 |
|
Filter Material |
POLYESTER |
|||
* Installation of filter decreases the air flow by about 8%.
* The above specification is based on 60Hz. When 50Hz is applied, the air flow volume decreases by about 20%.
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
|
YOC-300 |
320 |
409 |
180 |
220 |
210 |
240 |
Ø100 |
322 |
800 |
275 |
|
YOC-350 |
365 |
454 |
180 |
220 |
210 |
240 |
Ø125 |
370 |
895 |
345 |
|
YOC-400 |
452 |
595 |
280 |
320 |
360 |
400 |
Ø150 |
480 |
1058 |
379 |
|
YOC-420 |
AFTER FILTER
|
MODEL |
YOC-300 |
YOC-350 |
YOC-400 |
YOC-420 |
|
D |
Ø380 |
Ø380 |
Ø380 |
Ø380 |
|
H |
300 |
300 |
300 |
300 |
|
STANDARD PARTS |
OPTION PARTS |
|
1. DRAIN HOSE : 3m x 2ea |
1.AFTER FILTER |
|
2. FLANGE : 1EA |
