Oil mist collector

Model Name

YOC-300C

Series

Industrial purpose

View AllView All Series

Data

Manufacturer information

YHB ECO

Food waste handler, Electric dust collector, Oil mist, Mist cleaner, Industrial dust collector, Power lock and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

YHB ECO

Product Type

Machine

Brand

SKU

142487

Product Name

Oil mist collector

Model Name

YOC-300C, YOC-350C, YOC-400C, YOC-420C

Size

Weight

Product Details

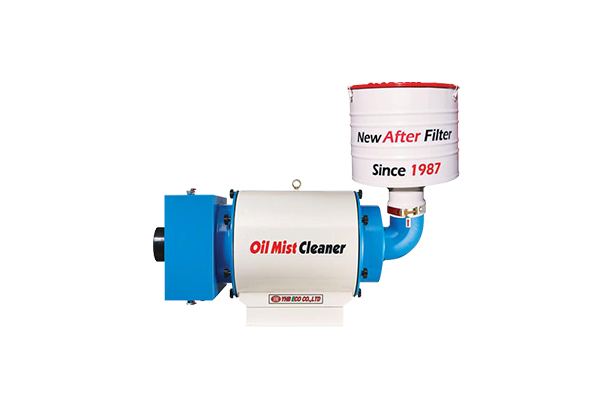

YOC C-TYPE(Non-water soluble)_Oil mist collector

Feature

Chip separator is mounted(glass filter)
Demister filter
Reusable filter
Reduces maintenance cost such as filter replacement

Specification

MODEL	YOC-300C	YOC-350C	YOC-400C	YOC-420C
POWER	3Phase 220V / 380V / 440V (50/60Hz)
Motor(Kw)	0.4	0.75	1.5	2.2
Ampere(A)	1.7/1.0/0.8	3.5/2.0/1.6	6.5/3.7/3.3	8.5/4.9/4.2
RPM	3450
Wind Flow Rate(㎥/min)	5	10	20	25
Static Pressure(mmAq)	90	120	170	180
Noise(dB)	65±2	68±2	70±2	70±2
Collection Rate(%)	2㎛ 기준 95%
inlet, Outlet(Ø)	100	125	150	150
Weight(kg)	30	37	64	67
Filter Material	Demister mesh

* Installation of filter decreases the air flow by about 8%.
* The above specification is based on 60Hz. When 50Hz is applied, the air flow volume decreases by about 20%.

MODEL	A	B	C	D	E	F	G	H	I	J
YOC-300C	320	409	180	220	210	240	Ø100	322	800	275
YOC-350C	365	454	180	220	210	240	Ø125	370	895	345
YOC-400C	452	595	280	320	360	400	Ø150	480	1058	379
YOC-420C	452	595	280	320	360	400	Ø150	480	1058	379
