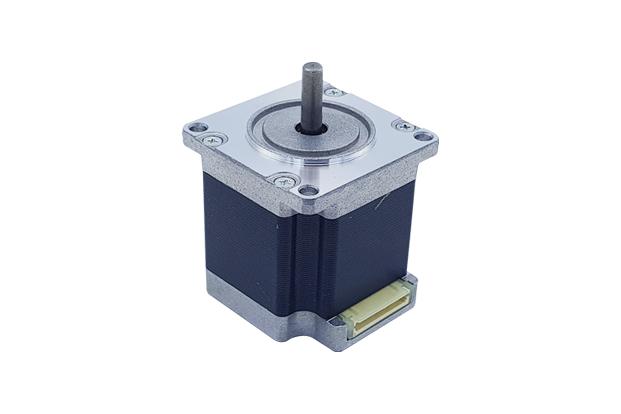

Nidec Servo Stepping Motor (KH56B900 Unipolar Type)
Model Name
KH5640-B90101
Data
-
Manufacturer information
WOOJIN SERVO
Small precision motor manufacturer, Induction motor, Speed control, Geared motor
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOOJIN SERVO
Product Type
Machine
Brand
-
SKU
136712
Product Name
Nidec Servo Stepping Motor (KH56B900 Unipolar Type)
Model Name
KH5640-B90101, KH5640-B90201, KH5652-B90101, KH5652-B90201, KH5674-B90101, KH5674-B90201
Size
-
Weight
-
Product Details
Product Kinds
| Step Angle : | 1.8 |
| Voltage : | 1.75~5.4V |
| Current : | 2.0~3.0A |
| Holding Torque : | 680~1970 (mN/m) |
| Inductance : | 0.92~4.9 (mH/Phase) |
| Rotor Inertia : | 170~530(g/cm²) |
■ Applications
SINGLE SHAFT
| MODEL |
|---|
| KH5640-B90101 |
| KH5640-B90201 |
| KH5652-B90101 |
| KH5652-B90201 |
| KH5674-B90101 |
| KH5674-B90201 |
OPTION
56B9(6)LUS300
■ FEATURES
High Torque (Up at Peak time 15 to 20% higher than our previous products)
■ SPECIFICATIONS
| STEP ANGLE °/step |
VOLTAGE V |
CURRENT A/PHASE |
WINDING RESISTANCE Ω/PHASE |
INDUCTANCE mH/PHASE |
HOLDING TORQUE (Measured value) mN・m |
ROTOR INERTIA g・㎠ |
MODEL |
|---|---|---|---|---|---|---|---|
| 1.8 | 1.75 | 3.0 | 0.58 | 0.92 | (680) | 170 | KH5640-B90101 |
| 1.8 | 2.7 | 2.0 | 1.35 | 2.0 | (680) | 170 | KH5640-B90201 |
| 1.8 | 2.28 | 3.0 | 0.76 | 1.4 | (1140) | 310 | KH5652-B90101 |
| 1.8 | 3.6 | 2.0 | 1.8 | 3.0 | (1140) | 310 | KH5652-B90201 |
| 1.8 | 3.48 | 3.0 | 1.16 | 2.2 | (1970) | 530 | KH5674-B90101 |
| 1.8 | 5.4 | 2.0 | 2.7 | 4.9 | (1970) | 530 | KH5674-B90201 |
■ GENERAL SPECIFICATIONS
| INSULATION RESISTANCE | 500V DC 100MΩ min（. at normal temp.& humidity,between lead and case) |
|---|---|
| DIELECTRIC STRENGTH | 500V AC 50Hz 1min（. at normal temp.& humidity,between lead and case) |
| AMBIENT TEMP. AND HUMIDITY | -10℃～+50℃、5%～95%RH（noncondensing) |
| STORAGE TEMP.AND HUMIDITY | -20℃～+70℃、5%～95%RH（noncondensing) |
| TEMPERATURE. RISE | 70K max（By resistance method) |
| POSITION ACCURACY | ±10% |
■ SPEED-TORQUE CHARACTERISTICS
■ CONNECTION DIAGRAMS
■ DIMENSIONS Unit = mm(inch)
■ OPTION（Leadwire Assembly)
■ CONNECTOR SPECIFICATIONS
| Maker | JST |
|---|---|
| Applicable Housing | XHP-6 |
| Applicable Terminal | SXH-001T-P0.6 |
| Lead Wire | AWG#22 , UL3266 |
