Product Name

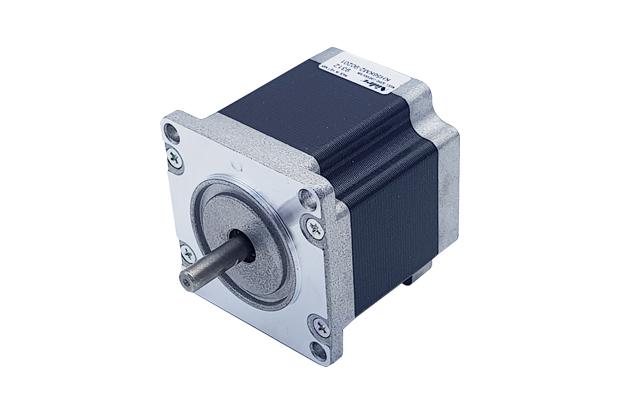

Nidec Servo Stepping Motor (KH56KM2 Type)
Model Name
KH56KM2
Size
-
Weight
-
Product Details
Product Kinds
| Step Angle : | 1.8 |
| Voltage : | 1.68~4.9V |
| Current : | 1.0~3.0A |
| Holding Torque : | 422 (mN/m) |
| Inductance : | 1.04~9.36 (mH/Phase) |
| Rotor Inertia : | 115(g/cm²) |
■ STANDARD SPECIFICATIONS
| MODEL | KH56KM2 | ||||
|---|---|---|---|---|---|
| SINGLE SHAFT | -901 | -902 | -903 | -951 | |
| DOUBLE SHAFT | -911 | -912 | -913 | -961 | |
| DRIVE METHOD | ──── | UNI-POLAR | BI-POLAR | ||
| NUMBER OF PHASES | ──── | 2 | 2 | ||
| STEP ANGLE | deg./step | 1.8 | 1.8 | ||
| VOLTAGE | V | 2.3 | 3.6 | 6.71 | 2.4 |
| CURRENT | A/PHASE | 3.0 | 2.0 | 1.0 | 2.0 |
| WINDING RESISTANCE | Ω/PHASE | 0.77 | 1.79 | 6.71 | 1.32 |
| INDUCTANCE | mH/PHASE | 1.04 | 3.0 | 9.36 | 3.19 |
| HOLDING TORQUE | mN・m | 834 | 834 | 834 | 932 |
| oz・in | 118 | 118 | 118 | 132 | |
| DETENT TORQUE | mN・m | 37 | 37 | 37 | 37 |
| oz・in | 5.2 | 5.2 | 5.2 | 5.2 | |
| ROTOR INERTIA | g・㎠ | 188 | 188 | 188 | 188 |
| o・in2 | 1.0 | 1.0 | 1.0 | 1.0 | |
| WEIGHTS | g | 650 | 650 | 650 | 650 |
| lb | 1.4 | 1.4 | 1.4 | 1.4 | |
| INSULATION RESISTANCE | ──── | 500VDC 100MΩmin. | |||
| DIELECTRIC STRENGTH | ──── | 500VAC 50HZ 1min. | |||
| OPERATING TEMP. RANGE | ℃ | 0 to 50 | |||
| ALLOWABLE TEMP.RISE | K | 70 | |||
■ Features
- Stronger torque generated in higher speed zone (KH56KM2-901 generates 1.2 times torque of our previous model at 1200 r/min. speed)
- Lowered Vibration by increased stiffness of body construction (lowered by 10% than our previous model)
- Improved Efficiency (1.1 times of our previous model, by high grade materials)

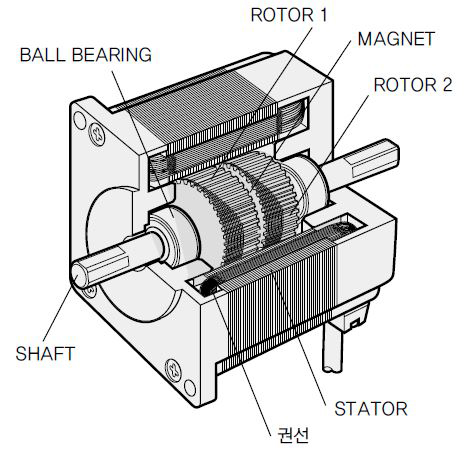

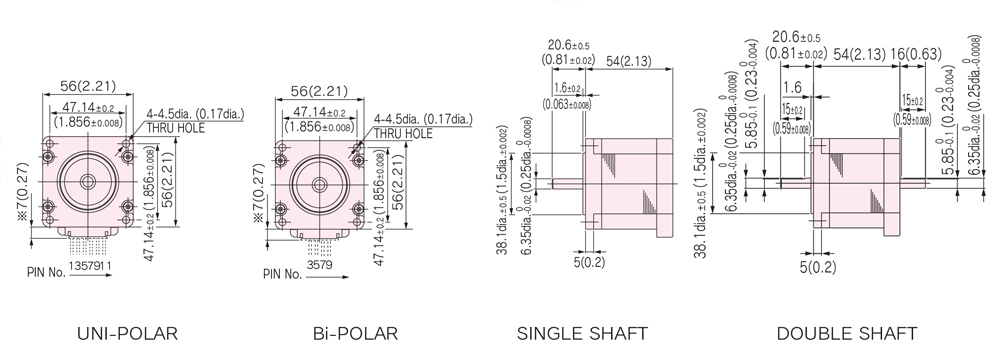

■ DIMENSIONS unit = mm (inch)

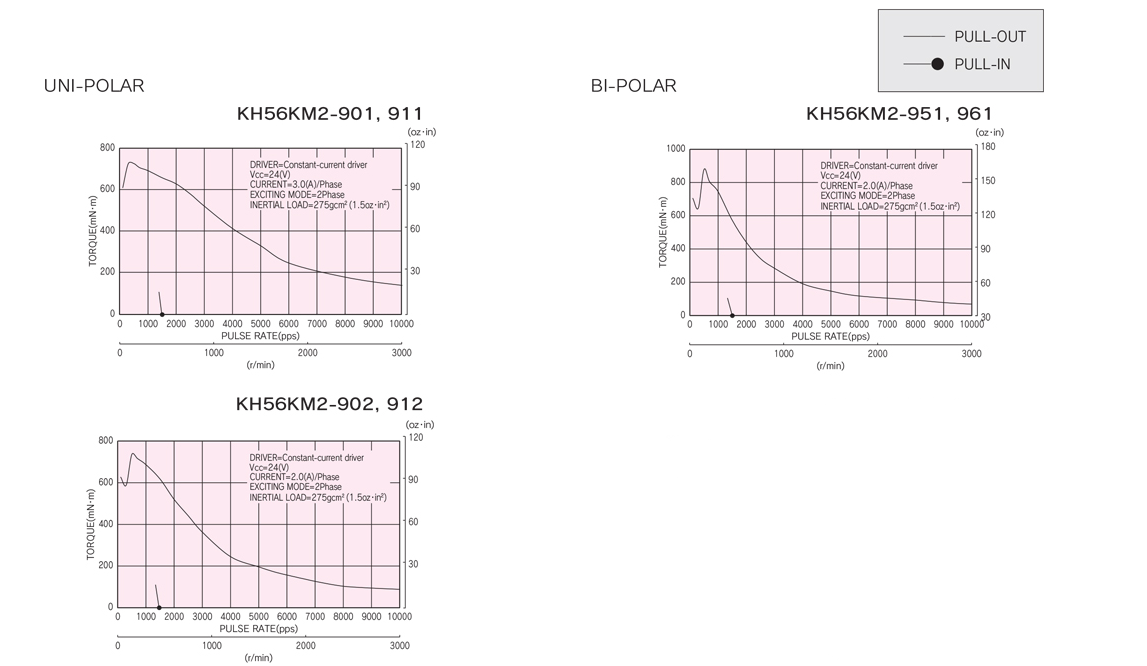

■ TORQUE CHARACTERISTICS vs. PULSE RATE

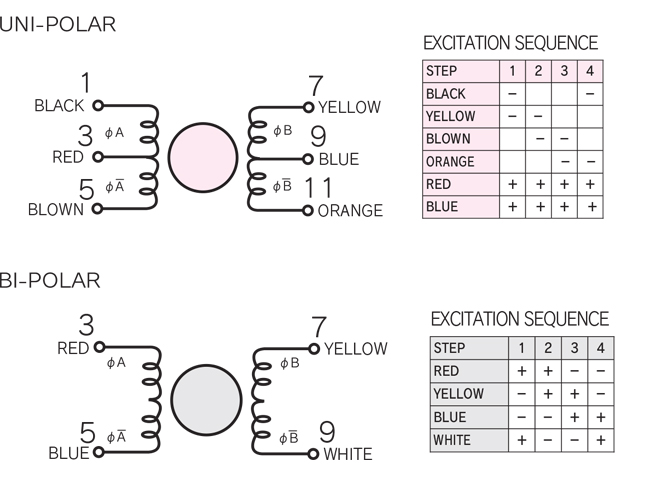

■ CONNECTION DIAGRAMS

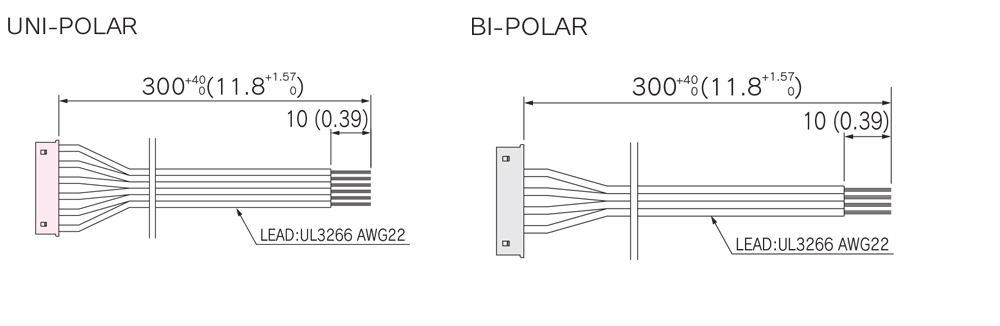

■ CONNECTION CABLE TO MOTOR unit = mm (inch)
More products

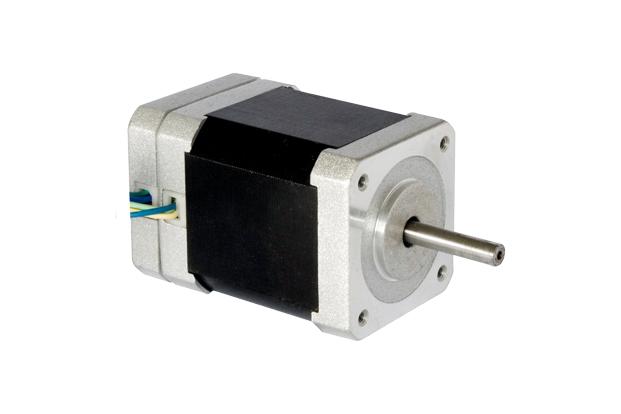

BLDC Motor (BLDC 42BLF)42BLF0, 142BLF02, 42BLF03

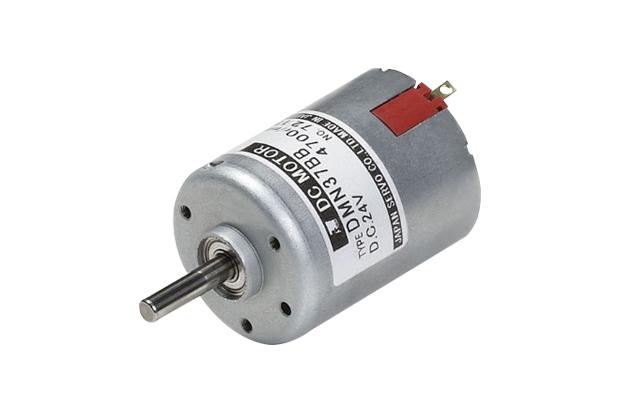

DC Motor (DMN Series)DMN37BA-BB, DMN37SA, DMN37SB, DMN37BA, DMN37BB, DMN37KA, DMN37KB, DMN37JB, DMN37HB

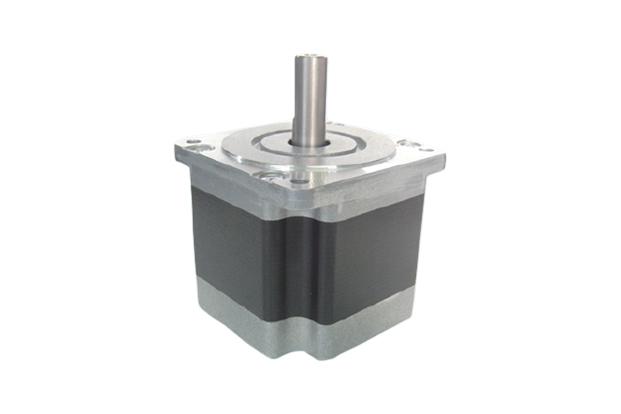

Nidec Servo Stepping Motor (KH86 Bipolar Type)KH86QM2-951, KH86QM2-952, KH86RM2-951, KH86RM2-952, KH86TM2-951, KH86TM2-952, KH86WM2-951, KH86WM2-952, KH86QM2-961, KH86QM2-962, KH86RM2-961, KH86RM2-962, KH86TM2-961, KH86TM2-962, KH86WM2-961, KH86WM2-962

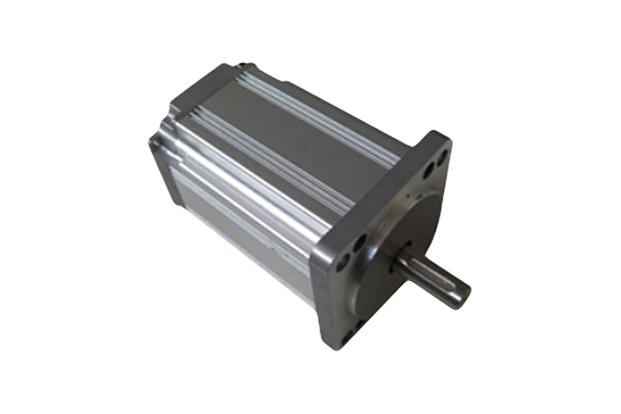

BLDC Motor (BLDC 80BL)80BL01, 80BL02, 80BL03

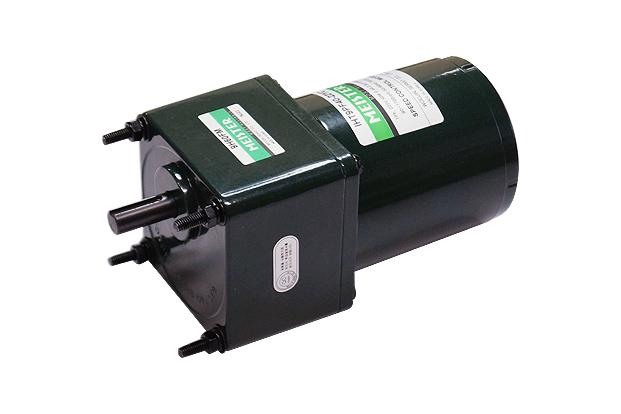

Speed Control Motor (90mm 40W)IHT9PF40-10, IHT9PF40-11, IHT9PF40-20, IHT9PF40-22, IHT9PF40-1, UIHT9PF40-2C, RHT9PF40-10, RHT9PF40-11, RHT9PF40-20, RHT9PF40-22, RHT9PF40-1, URHT9PF40-2C
Speed Control Motor (60mm 6W)IHT6PF6-10, IHT6PF6-11, IHT6PF6-20, IHT6PF6-22, IHT6PF6-1, UIHT6PF6-2C, RHT6PF6-10, RHT6PF6-11, RHT6PF6-20, RHT6PF6-22, RHT6PF6-1, URHT6PF6-2C
Reversible Motor (90mm 90W)RH9PG90-10, RH9PG90-11, RH9PG90-20, RH9PG90-22, RH9PG90-1U, RH9PG90-2C
Reversible Motor (80mm 40W)RH8PF40-10, RH8PF40-11, RH8PF40-20, RH8PF40-22, RH8PF40-1U, RH8PF40-2C
Reversible Motor (80mm 20W)RH8PF20-10, RH8PF20-11,R H8PF20-20, RH8PF20-22, RH8PF20-1, URH8PF15-2C
Induction Motor (90mm 150W)IH9S150-10, HIH9S150-11, HIH9S150-20, HIH9S150-22, HIH9PG150-32, IH9PG150-33, IH9PG150-34, IH9PG150-32, HIH9PG150-33, HIH9PG150-34H
Induction Motor (90mm 120W)IH9PG120-10, IH9PG120-11, IH9PG120-20, IH9PG120-22, IH9PG120-2, CIH9PG120-32, IH9PG90-33, IH9PG90-34

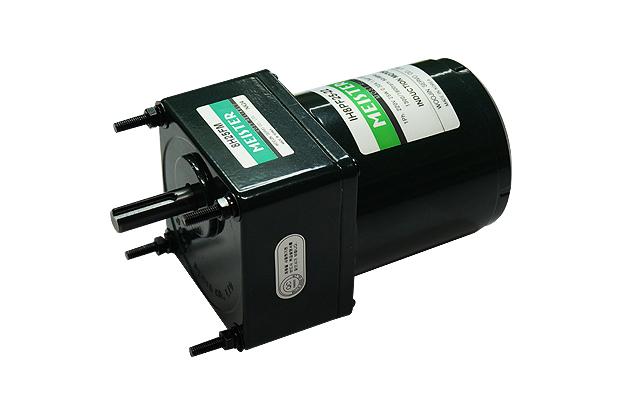

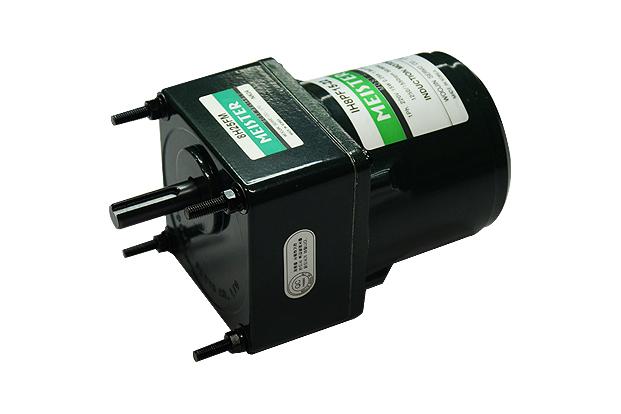

Induction Motor (80mm 25W)IH8PF25-10, IH8PF25-11, IH8PF25-20, IH8PF25-22, IH8PF25-1, UIH8PF25-2, CIH8PF25-32, IH8PF25-33, IH8PF25-34
