ㆍMost Powerful
ㆍDUTY 30 Min.
■ PERFORMANCE DATA (DUTY : 30 Min.)
| Motor Type | Output (W) |
Voltage (V) |
Freq. (Hz) |
Rating | Starting | Condenser | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Input (W) |
Current (A) |
Torque (kgf·cm) |
Speed (rpm) |
Torque (kgf·cm) |
(V) | (㎌) | ||||
| RH9PG120-10 | 120 | 1ø100 | 50 | 240 | 2.30 | 9.74 | 1200 | 6.00 | 250 | 30.0 |
| 60 | 230 | 2.30 | 7.79 | 1500 | 5.50 | |||||
| RH9PG120-11 | 1ø110 | 60 | 270 | 2.30 | 7.79 | 1500 | 7.50 | 250 | 30..0 | |
| RH9PG120-20 | 120 | 1ø200 | 50 | 200 | 1.30 | 8.99 | 1300 | 5.50 | 450 | 7.0 |
| 60 | 200 | 1.30 | 7.30 | 1600 | 5.50 | |||||
| RH9PG120-22 | 1ø220 | 60 | 200 | 1.30 | 7.30 | 1600 | 7.00 | 450 | 7.0 | |
| RH9PG120-2C | 110 | 1ø220 | 50 | 230 | 1.14 | 8.93 | 1200 | 7.50 | 450 | 7.0 |
| 120 | 1ø240 | 50 | 270 | 1.14 | 9.74 | 1200 | 8.50 | |||
- For motor with straight shaft, please write S in place of PG in Motor Type.
- Motor Type in green screen represents the motors with TP(Thermal Protect) according to UL or CE regulation.
- Reversing direction without stopping completely may result in damage to the motor and reduce the life of the motor due to excessive inertia.
- The starting torque is higher than that of the INDUCTION MOTOR.
■ RATED TORQUE OF GEARED MOTOR
| Speed of Geared Motor | rpm | 500 | 300 | 200 | 120 | 100 | 60 | 50 | 30 | 20 | 15 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 50Hz | 3 | 5 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 100 | 150 |
| 60Hz | 3.6 | 6 | 9 | 15 | 18 | 30 | 36 | 60 | 90 | 120 | 180 | |
| RH9PG120 + 9H□GB | 24 | 39 | 59 | 89 | 106 | 160 | 192 | 200 | 200 | 200 | 200 | |
| 23 | 38 | 57 | 85 | 102 | 153 | 184 | 200 | 200 | 200 | 200 | ||
| (unit : kg·cm) | ||||||||||||
- The rotation of geared motor in green screen is reverse of motor rotation.
- Speed of Geared Motor is based on motor synchronous speed. In normal operation, the speed will be 2 to 15 percent lower than above figure.
- When ordering gear head, please fill blank □ with gear ratio
■ MOTOR(STRAIGHT SHAFT) RH9S120 WT 3.2kg

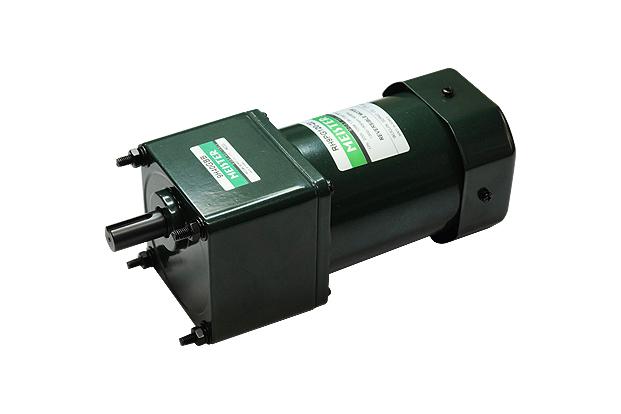

■ GEARED MOTOR RH9PG120 + 9H□ GB WT 3.2+1.5kg
■ BOLT SIZE
| TYPE | BOLT SIZE |
|---|---|
| 9H□ GB | M6×90 |
■ KEY SPEC
■ GEARED HEAD 9H□ GBF WT 1.5kg
■ BOLT SIZE
| TYPE | BOLT SIZE |
|---|---|
| 9H□ GBF | M6×25 |
■ KEY SPEC
■ DECIMAL GEAR HEAD 9H10XG WT 0.6kg
■ WIRING DIAGRAM
- The direction of rotation is seen from the end of motor shaft.
- Change the rotation direction of the motor only after the motor stops completely.
