ㆍ1Ph./3Ph. Motor
ㆍCONTINUOUS DUTY
■ PERFORMANCE DATA (DUTY : CONTINUOUS)
| Motor Type | Output (W) |
Voltage (V) |
Freq. (Hz) |
Rating | Starting | Condenser | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Input (W) |
Current (A) |
Torque (kgf·cm) |
Speed (rpm) |
Torque (kgf·cm) |
(V) | (㎌) | ||||
| IH9PU180-10 | 180 | 1ø100 | 50 | 330 | 3.50 | 13.48 | 1300 | 6.20 | 250 | 30.0 |
| 60 | 330 | 3.50 | 10.95 | 1600 | 6.00 | |||||
| IH9PU180-11 | 1ø110 | 60 | 380 | 3.50 | 10.95 | 1600 | 7.00 | 250 | 30.0 | |
| IH9PU180-20 | 180 | 1ø200 | 50 | 320 | 1.50 | 13.48 | 1300 | 6.20 | 450 | 6.5 |
| 60 | 320 | 1.50 | 10.95 | 1600 | 6.00 | |||||
| IH9PU180-22 | 1ø220 | 50 | 360 | 1.50 | 10.95 | 1600 | 7.00 | 450 | 6.5 | |
| IH9PU180-2C | 150 | 1ø220 | 50 | 400 | 1.32 | 11.68 | 1250 | 6.60 | 450 | 7.0 |
| 180 | 1ø240 | 50 | 400 | 1.32 | 14.02 | 1250 | 8.00 | |||
| IH9PU200-32 | 200 | 3ø220 | 50 | 400 | 1.20 | 14.98 | 1300 | 30.00 | ||
| 60 | 400 | 1.20 | 12.17 | 1600 | 25.00 | |||||
| IH9PU200-33 | 200 | 3ø380 | 50 | 400 | 0.74 | 14.98 | 1300 | 30.00 | ||
| 60 | 400 | 0.74 | 12.17 | 1600 | 25.00 | |||||
| IH9PU200-34 | 200 | 3ø380 | 50 | 400 | 0.64 | 14.98 | 1300 | 30.00 | ||
| 60 | 400 | 0.64 | 12.17 | 1600 | 25.00 | |||||
- For mortor with straight shaft, please write S in place of PU in Motor Type.
- Motor Type in green screen represents the motors with TP(Thermal Protect) according to UL or CE regulation.
- ※ The inverter is not available on three phase 380V~440V motors.
- Insulation of windings may deteriorate and damage the motor
■ RATED TORQUE OF GEARED MOTOR
| Speed of Geared Motor | rpm | 500 | 300 | 200 | 120 | 100 | 60 | 50 | 30 | 20 | 15 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 50Hz | 3 | 5 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 100 | 150 |
| 60Hz | 3.6 | 6 | 9 | 15 | 18 | 30 | 36 | 60 | 90 | 120 | 180 | |
| IH9PU180 + 9H□UB | 33 | 55 | 82 | 123 | 147 | 221 | 265 | 300 | 300 | 300 | 300 | |
| IH9PU200 + 9H□UB | 32 | 53 | 80 | 80 | 144 | 216 | 259 | 300 | 300 | 300 | 300 | |
| (unit : kg·cm) | ||||||||||||
- The rotation of geared motor in green screen is reverse of motor rotation.
- Speed of Geared Motor is based on motor synchronous speed. In normal operation, the speed will be 2 to 15 percent lower than above figure.
- When ordering gear head, please fill blank □ with gear ratio
■ MOTOR(STRAIGHT SHAFT) IH9S180/200 WT 3.7kg

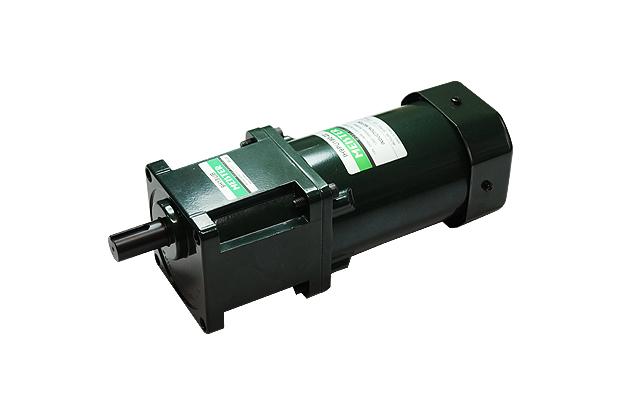

■ GEARED MOTOR IH9PU180/200 + 9H□ UB WT 3.7+2.0kg
■ BOLT SIZE
| TYPE | BOLT SIZE |
|---|---|
| 9H□ UB | M6×25 |
■ KEY SPEC
■ DECIMAL GEAR HEAD 9H10XU WT 0.6kg
■ WIRING DIAGRAM
- The direction of rotation is seen from the end of motor shaft.
- Change the rotation direction of the motor only after the motor stops completely.
