Manufacturer
WOOJIN SERVO
Product Type
Machine
Brand
-
SKU
136705
Product Name

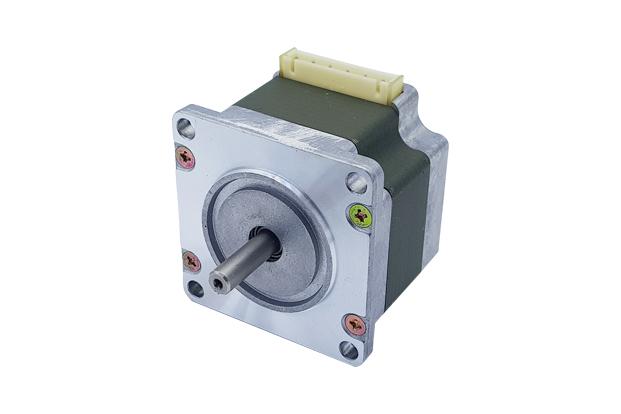

Nidec Servo Stepping Motor (KH56JM2 Type)
Model Name
KH56JM2
Size
-
Weight
-
Product Details
Product Kinds
| Step Angle : | 1.8 |
| Voltage : | 1.68~4.9V |
| Current : | 1.0~3.0A |
| Holding Torque : | 422 (mN/m) |
| Inductance : | 1.04~9.36 (mH/Phase) |
| Rotor Inertia : | 115(g/cm²) |
■ STANDARD SPECIFICATIONS
| MODEL | KH56JM2 | ||||
|---|---|---|---|---|---|
| SINGLE SHAFT | -901 | -902 | -903 | -951 | |
| DOUBLE SHAFT | -911 | -912 | -913 | -961 | |
| DRIVE METHOD | ──── | UNI-POLAR | BI-POLAR | ||
| NUMBER OF PHASES | ──── | 2 | 2 | ||
| STEP ANGLE | deg./step | 1.8 | 1.8 | ||
| VOLTAGE | V | 1.68 | 2.78 | 4.9 | 1.96 |
| CURRENT | A/PHASE | 3.0 | 2.0 | 1.0 | 2.0 |
| WINDING RESISTANCE | Ω/PHASE | 0.58 | 1.39 | 4.9 | 0.98 |
| INDUCTANCE | mH/PHASE | 0.61 | 1.8 | 6.68 | 2.27 |
| HOLDING TORQUE | mN・m | 422 | 422 | 422 | 490 |
| oz・in | 60 | 60 | 60 | 69 | |
| DETENT TORQUE | mN・m | 25 | 25 | 25 | 25 |
| oz・in | 3.5 | 3.5 | 3.5 | 3.5 | |
| WEIGHTS | g | 400 | 400 | 400 | 400 |
| lb | 0.88 | 0.88 | 0.88 | 0.88 | |
| INSULATION RESISTANCE | ──── | 500VDC 100MΩmin. | |||
| DIELECTRIC STRENGTH | ──── | 500VAC 50HZ 1min. | |||
| OPERATING TEMP. RANGE | ℃ | 0 to 50 | |||
| ALLOWABLE TEMP.RISE | K | 70 | |||
■ Features
- Stronger torque generated in higher speed zone (KH56KM2-901 generates 1.2 times torque of our previous model at 1200 r/min. speed)
- Lowered Vibration by increased stiffness of body construction (lowered by 10% than our previous model)
- Improved Efficiency (1.1 times of our previous model, by high grade materials)
■ DIMENSIONSunit = mm (inch)
■ TORQUE CHARACTERISTICS vs. PULSE RATE
■ CONNECTION DIAGRAMS
■ CONNECTION CABLE TO MOTORunit = mm (inch)
More products

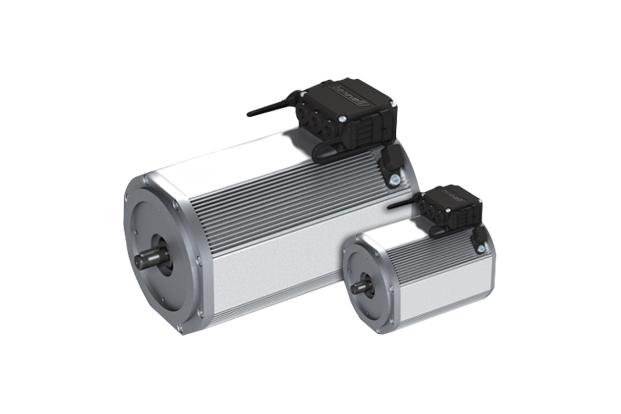

Transaxle Motor (AMAC Series)AMAC125-035, AMAC125-075, AMAC125-100, AMAC125-130, AMAC200-050, AMAC200-090, AMAC200-125, AMAC200-165
Rotary Optical, Linear OpticalBOS10, BOS15

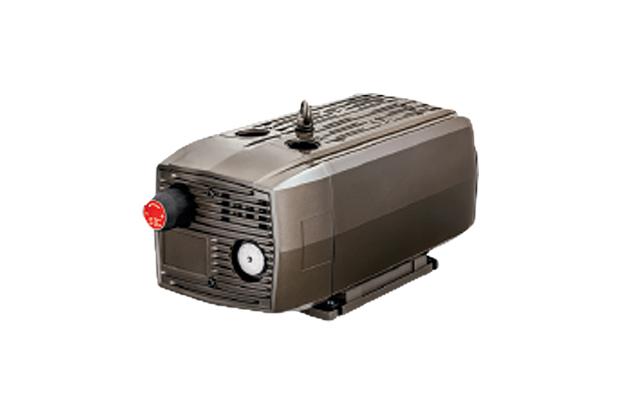

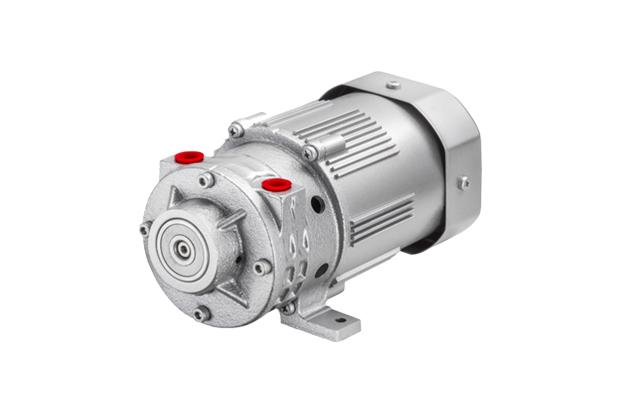

Pump MotorDV-16V-T, DV-25V-T
Pump MotorDV-16V-S, DV-25V-S
Pump MotorDV-3N, DV-5N, DV-8N, DV-10N

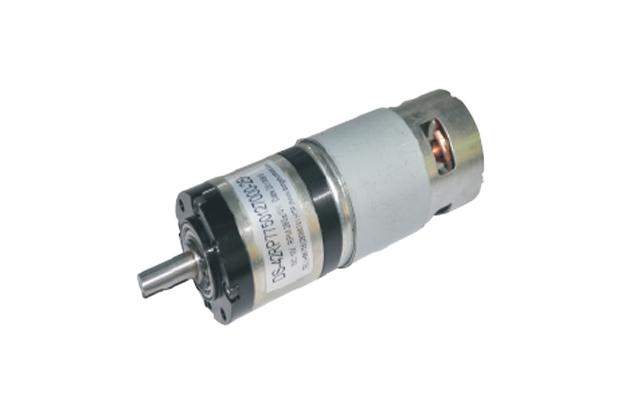

Planetary Geared Motor (DSD-Series)DS-42RP775 42ø, DS-775012300, DS-7750124500, DS-7750126000, DS-7750243000, DS-7750244500, DS-7750246000

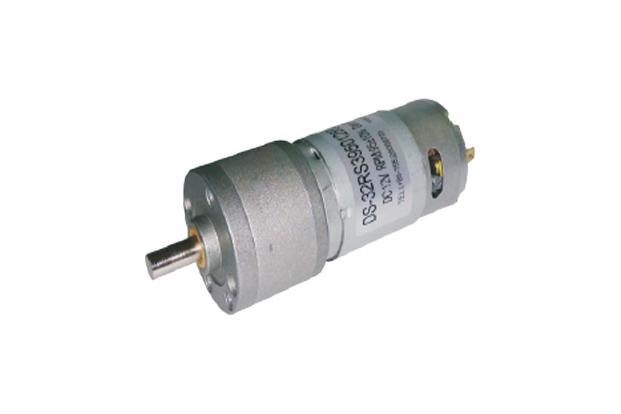

Planetary Geared Motor (DSD-Series)DS-32RS395 32ø, DSD-39501210000, DSD-3950246000

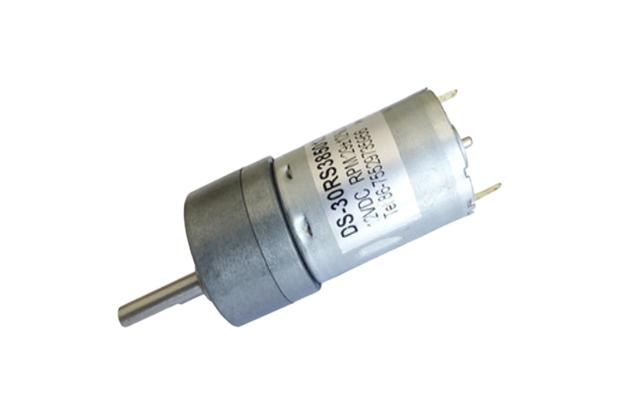

Planetary Geared Motor (DSD-Series)DS-30RS385 - 30Φ, DSD-3850123000, DSD-3850124500, DSD-3850129000, DSD-3850243500, DSD-3850247400

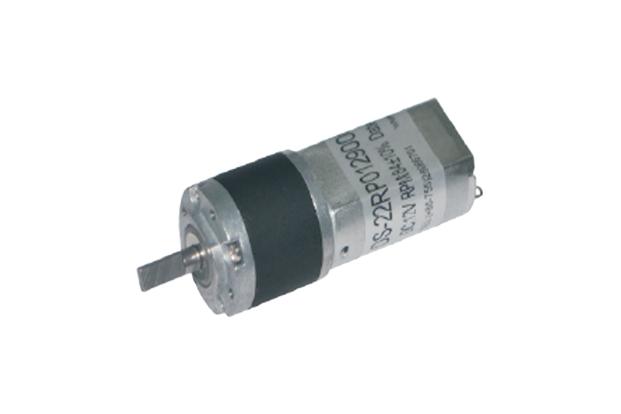

Planetary Geared Motor (DSD-Series)DS-22RP180 - 22Φ, DSD-1800055000, DSD-18000128000, DSD-18000249000

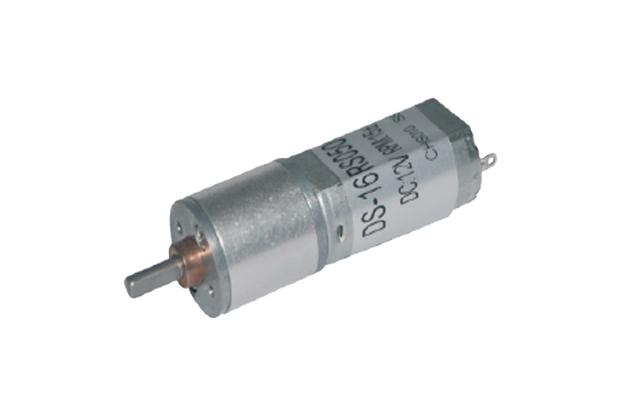

Planetary Geared Motor (DSD-Series)DS-16RS050 - 16Φ, DSD-0500068000, DSD-05000612000, DSD-0500098000, DSD-0500128000, DSD-05001217900

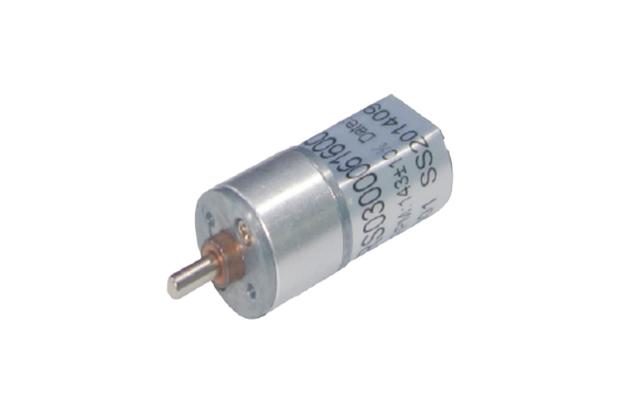

Planetary Geared Motor (DSD-Series)DS-16RS030 - 16Φ, DSD-0300038500, DSD-03000610400

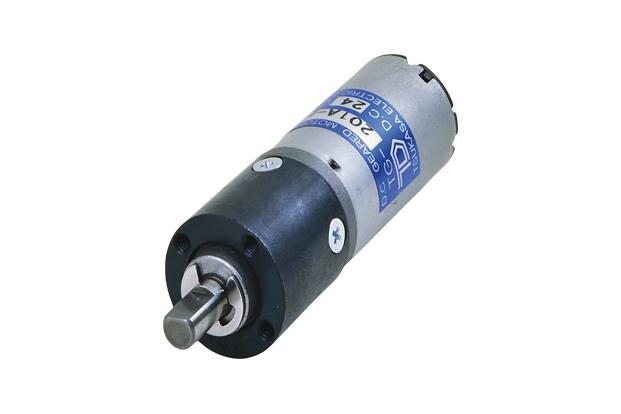

Planetary Geared Motor (TG-Series)TG-22ø-TG-201 22ø, TG-201A-FU, TG-201B-FU

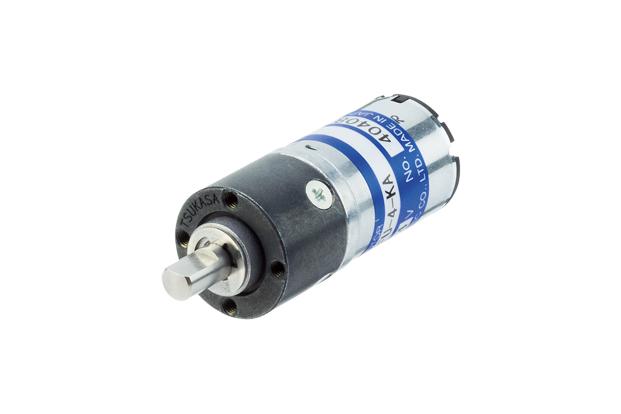

Planetary Geared Motor (TG-Series)TG-22ø-TG-01 FU 22ø, TG-01F-FU, TG-01G-FU, TG-01H-FU
Planetary Geared Motor (TG-Series)TG-22ø-TG 01 RU 22ø, TG-01F-RU, TG-01G-RU, TG-01H-RU

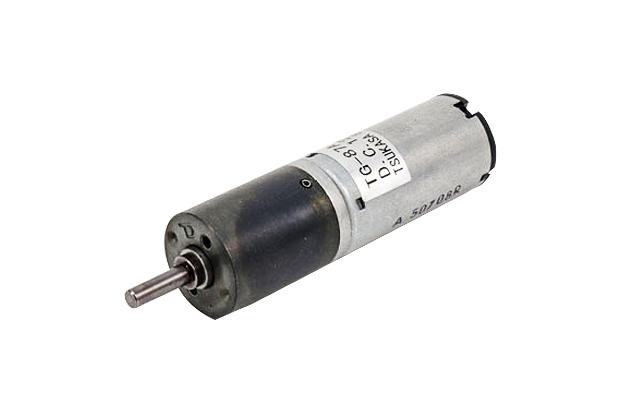

Planetary Geared Motor (TG-Series)TG-87-16ø, TG-87A-GU

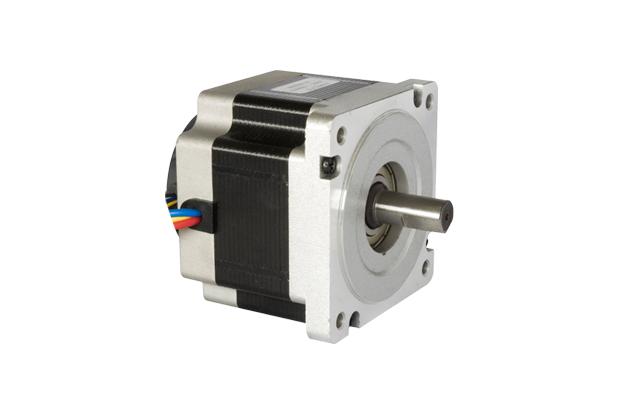

BLDC Motor (BLDC 86BLF)86BLF07, 86BLF06, 86BLF01, 86BLF02, 86BLF03, 86BLF04
