Product Name

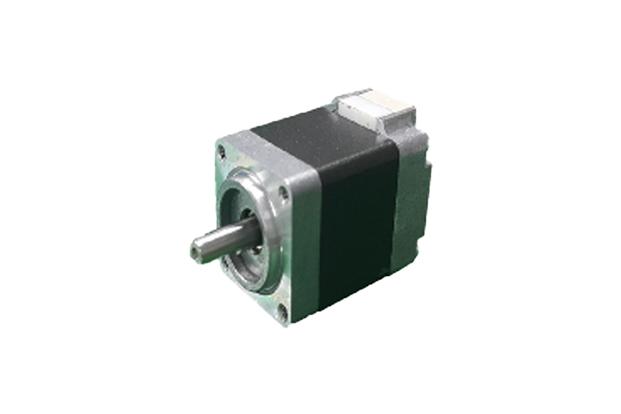

Nidec Servo Stepping Motor (KH20 Type)
Model Name
KH2030-501, KH2030-551, KH2047-501, KH2047-551
Size
-
Weight
-
Product Details
Product Kinds
| Step Angle : | 1.8 |
| Voltage : | 24V |
| Current : | 0.35A |
| Holding Torque : | 14~20(mM/m) |
| Inductance : | 2Phase |
■ FEATURES
- We challenged the limit of the miniaturization of HB stepper.
- The characteristic of the competitors is exceeded by analysis techniques.
■ SPECIFICATIONS
| Model name | Winding | Size&Torque | Holding Torque | ||
|---|---|---|---|---|---|
| mm | inch | mN・m | oz・inch | ||
| KH2030-501 | Unipolar | 20sq-30 | 0.79sq-1.18 | 14 | 8.1 |
| KH2030-551 | Bipolar | 20 | 11.6 | ||
| KH2047-501 | Unipolar | 20sq-47 | 0.79sq-1.85 | 25 | 14.5 |
| KH2047-551 | Bipolar | 33 | 19.2 | ||

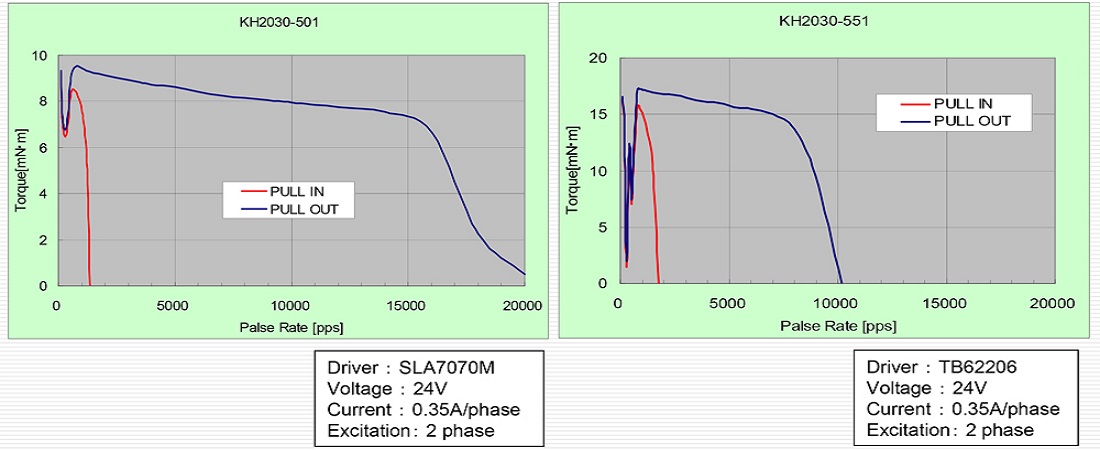

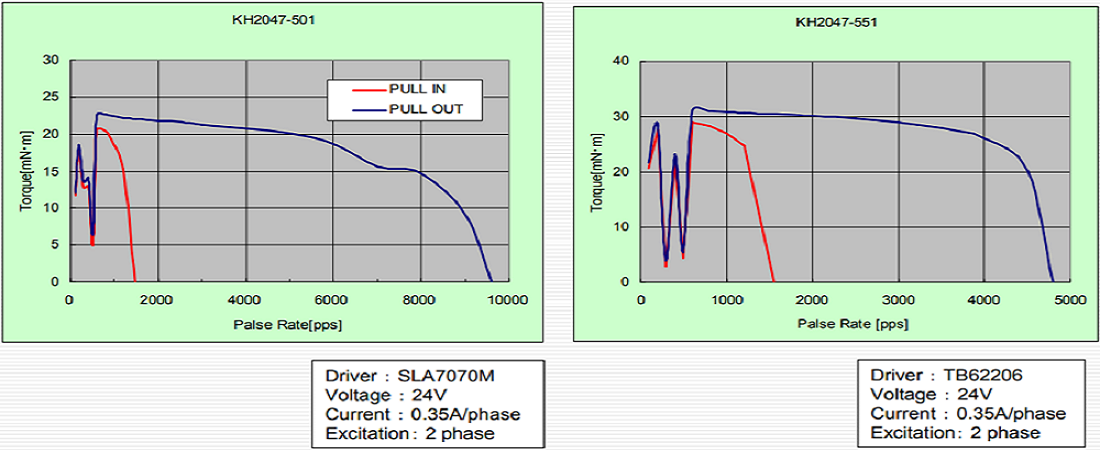

■ Torque curve for reference
KH2030 (Unipolar & Bipolar)

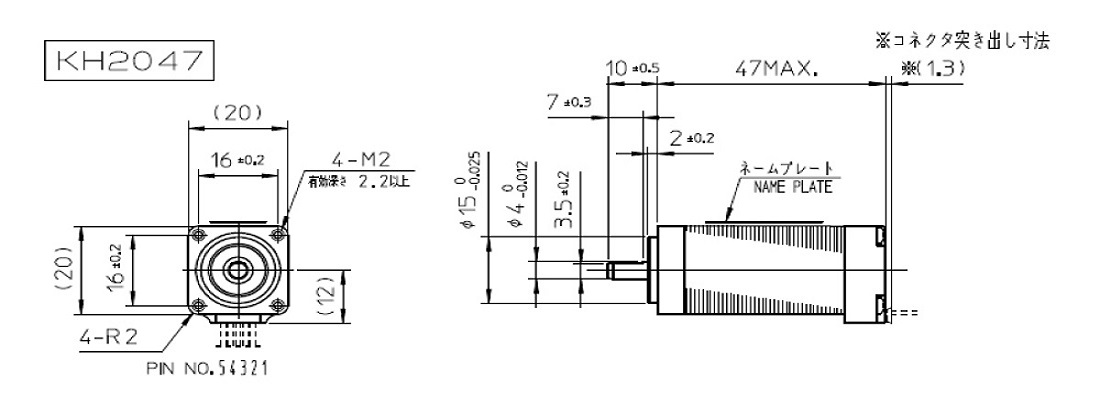

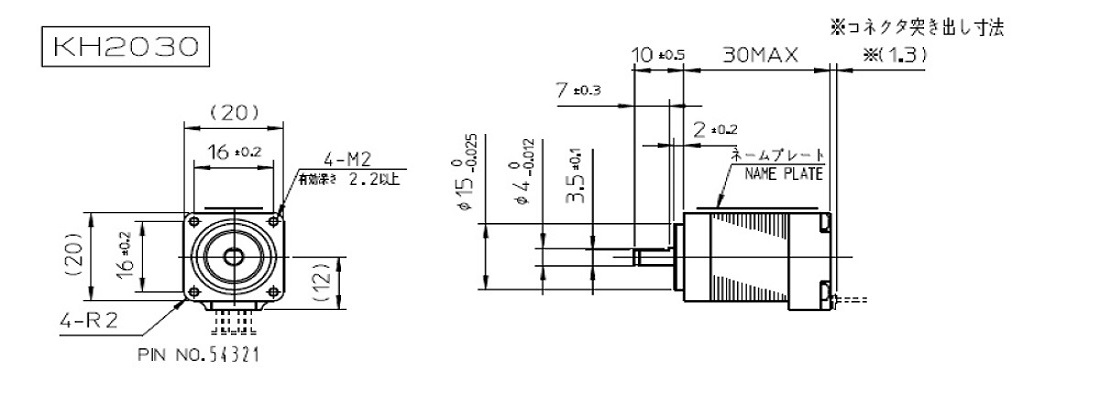

■ Mecahnical Dimensions

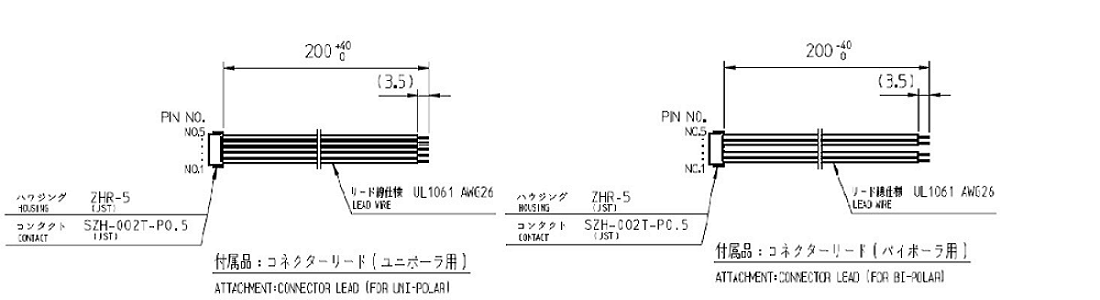

■ Option (Leadwire for Unipolar and Bipolar)
