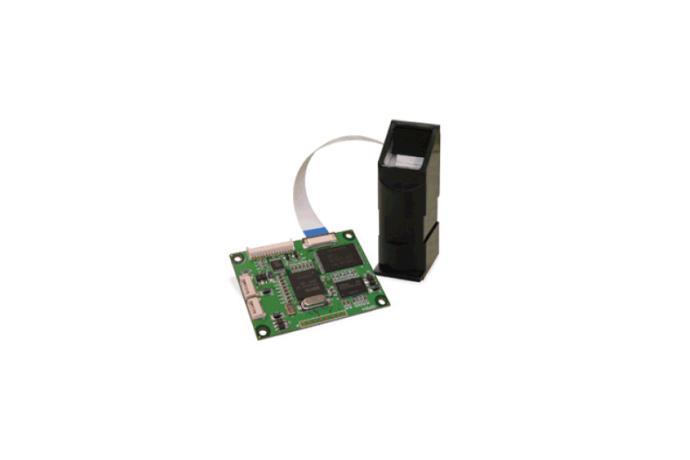

Optic Module

Optic Module

SDOPP04P / SDOPP04P-WR

Image Resolution / Size

508 DPI / 258 x 336 pixels

Sensing Area / Platen Size

12.9 x 16.8 mm / 16.1 x 18.2 mm

Fingerprint Capture Time

0.2 ~ 0.7 second with Smart Capture

Light Source / Typical Lifetime

LED / 60,000 hours

Dimensions / Weight

21 x 32 x 62 mm / 32 g

Board

CPU / Flash Memory

533 MHz ARM / 128 MB

Storage Capacity

10,000 Users (1:1 or 1:N)

Minutiae Extraction Time

< 0.9 second

Matching Time (1:1)

< 0.1 second

Matching Time (1:N)

< 0.4 second

MINEX Compliant Algorithms

Yes

Fingerprint Template

SecuGen, INCITS 378, ISO 19794-2

Communication Speed (max)

921,600 bps (RS 232, CMOS Serial)

External Interface

RS232 Serial, Wiegand, GPIO

Dimensions / Weight

59 x 43 x 8 mm / 16 g

Other

Supply Voltage

3.3 V DC

Current Consumption

120 mA (idle), 400 mA (operating)

Operating Temperature

-20o ~ 65o C

Operating Humidity

90% or less RH, noncondensing

Auto-On™ & Smart Capture™

Yes

Compliance / Certification

RoHS, FIPS 201 / FBI (PIV Single Finger)

Water Resistant Version

SDA04PIV-WR
