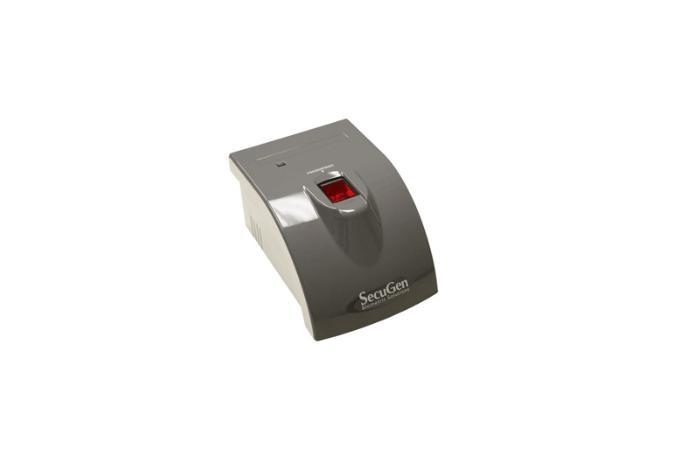

iD-SERIAL

SecuGen iD-SERIAL™ is a nextextext-generation system designed for integration into applications such as Point of Sale(POS) terminals and Time and Attendandance(T&A) tracking stations or any other application where a serial interface is preferred.
The iD-SERIAL incorporates SecuGen's stand-alone SDA03M™ module, featuring a ruggedized, high image quality SDOPP03M fingerprint optic module and an on-board processor.
In addition to fingerprint enrollment, matching and storage capabilities, the iD-SERIAL includes SecuGen's high speed SecuSearch™ fingerprint identification algorithm for extremely fast 1:N search capabilities.
The iD-SERIAL has an RS-232 interface and uses an RJ-22 modular jack for maximum flexibility in cable configurations.
The iD-SERIAL also includes the Auto -On™ Automatic Finger Detection function, An external power supply is included with each unit.
The serial interface communication speeds up to 460800 BPS.

Integrat of the SecuGen iD-SERIAL into any application can be facilitated by iD-SERIA Developer's Kit, which is sold separately.

Possible Application

- Point of Sale
- Time and Attendance
- Fingerprint Enrollment Station

Specification
