Product Details

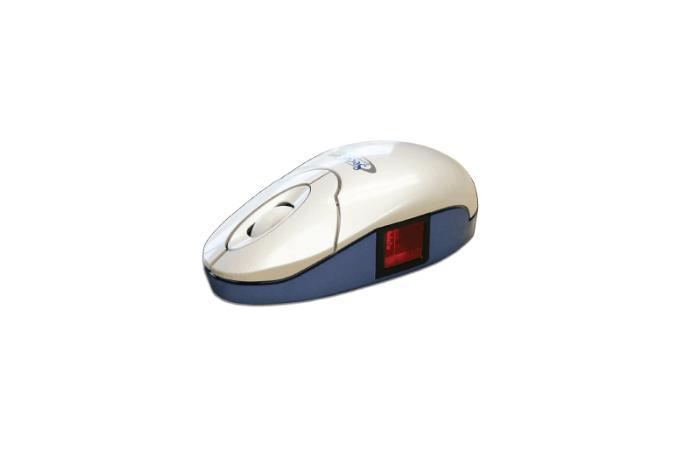

OptiMouse Plus

OptiMouse Plus features the industry's most accurate, rugged, and affordable USB fingerprint sensor using patented SEIR™ technology to give you the highest quality in fingerprint biometrics.

Features

- USB mouse with optical tracking and embedded fingerprint sensor
- Accurate, patented optical fingerprint sensor with 500 DPI resolution
- Smart CaptureTM for reliable scanning of dry, moist, aged, scarred and difficult-to-scan fingers
- Hardened optical glass platen that is scratch, impact, corrosion and electrostatic shock resistant
- Programmable buttons and scroll wheel
- Ergonomic design for consistent placement of fingerprint
- Supports BioAPI, INCITS 378-2004, and ISO 19794
- Supports SecuGen proprietary, 3rd party, and MINEX Certified Template Extractor and Matcher algorithms

Specification

Product Name		OptiMouse Plus
Model Number		MSDU03P
Fingerprint Reader	Optic Module	SDU03P
	Image Resolution	500 DPI
	Image Size	260 x 300 pixels
	Platen Size	16.1 mm x 18.2 mm
	Sensing Area	13.2 mm x 15.2 mm
	Image Grayscale	256 levels (8-bit)
	Light Source	Red LED
	LED Lifetime (typical)	60,000 hours
	Imaging Speed (capture time)	0.2 - 0.5 seconds with Smart Capture
Electrical / Communication	Interface	USB 1.1 Full-Speed, USB 2.0 Hi-Speed
	Supply Voltage	5 V DC (via USB)
	Maximum Current	180 mA
Physical	Dimensions (W x L x H)	63 x 120 x 39 mm
	Weight	170 g
	Cable Length	1400 mm
	Operating Temperature	-10° ~ 50°C
	Operating Humidity	90% or less RH noncondensing
Other	Warranty	One year limited
	Supported Standards	ANSI INCITS 378, BioAPI, ISO/IEC 19794-2, ISO/IEC 19794-4
	Compliance	FCC, CE, KCC, RoHS
	Supported Operating Systems	Windows 7, Vista, XP, 2000, 9x Windows Server 2008 R2, 2003 Windows CE, Java
