USB Fingerprint Sensors

Model Name

SDU03P

Series

Biometrics

View AllView All Series

Data

Manufacturer information

Woo Kyung Optics

Fire control equipment, Panoramic telescope, Telescope, Elbow telescopes, Optical fingerprint recognition equipment and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

Woo Kyung Optics

Product Type

Machine

Brand

SKU

28204

Product Name

USB Fingerprint Sensors

Model Name

SDU03P

Size

Weight

Product Details

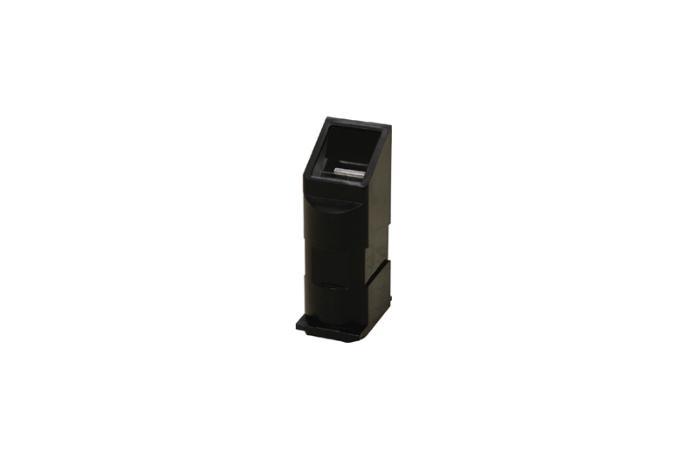

SDU03P

SecuGen Hamsters are the industry's most accurate, rugged, and affordable USB fingerprint readers.
These high-performance, versatile readers feature advanced optical sensors engineered with patented SEIR™ technology to give you the highest quality in fingerprint biometrics.

Features

- Accurate, patented optical USB fingerprint sensor with 500 DPI resolution
- Auto-OnTM to automatically detect the presence of a finger when placed on the reader
- Smart CaptureTM for reliable scanning of dry, moist, aged, scarred and difficult-to-scan fingers
- Hardened optical glass platen that is scratch, impact, corrosion and electrostatic shock resistant
- Compact and ergonomic design works with any finger or thumb
- Supports BioAPI, INCITS 378-2004 and ISO 19794
- Supports SecuGen proprietary, 3rd party and MINEX Certified Template Extractor and Matcher algorithms

Specification

Fingerprint Reader	Optic Module	SDU03P
	Image Resolution	500 DPI
	Image Size	260 x 300 pixels
	Platen Size	16.1 mm x 18.2 mm
	Sensing Area	13.2 mm x 15.2 mm
	Image Grayscale	256 levels (8-bit)
	Light Source	Red LED
	LED Lifetime (typical)	60,000 hours
	Imaging Speed (capture time)	0.2 - 0.5 seconds with Smart Capture
Electrical / Communication	Interface	USB 1.1 Full-Speed, USB 2.0 Hi-Speed
	Supply Voltage	5 V DC (via USB)
	Maximum Current	120 mA
Physical	Dimensions (W x L x H)	27 x 40 x 73 mm (without stand) 53 x 73 x 84 mm (with stand)
	Weight	100 g (without stand) 165 g (with stand)
	Cable Length	1500 mm
	Operating Temperature	-20o to +65o C
	Operating Humidity	90% or less RH noncondensing
Other	Warranty	One year limited
	Supported Standards	ANSI INCITS 378, BioAPI, FIPS 201, ISO/IEC 19794-2, ISO/IEC 19794-4
	Compliance	FCC, CE, RoHS
	Supported Operating Systems	Windows 7, Vista, XP, 2000, 9x Windows Server 2008 R2, 2003 Android, Java, Linux, Windows CE
