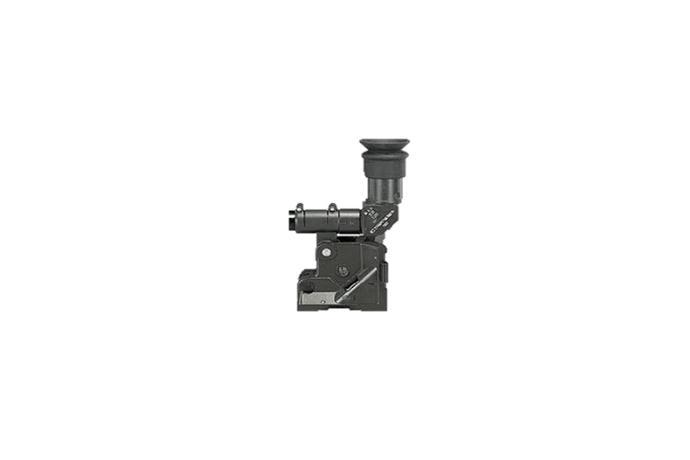

BORE SIGHT KM45A1

Stock Number : 1240-00678-8025

Bore sight KM45A1 is essentially a fixed-focus telescope adapted for use to aline axis of the bore of the 60MM, 81MM, 105MM and 4.2 inch mortarswith a distant aiming point.

 < SPECIFICATION >
 Length 41/2 inch
 Width 4 inch
 Height 43/4 inch
 Weight 21/2 lb
 Power 4 X
 Field of View 10°
 Exit Pupil Diameter 0.15 inch
 Effective Focal Length
    Objective 3.200 inch
 Clear Eye Distance 0.560 inch
