Product Name Elbow Telescope
Model M109
Series Military
Catalog
Product Description

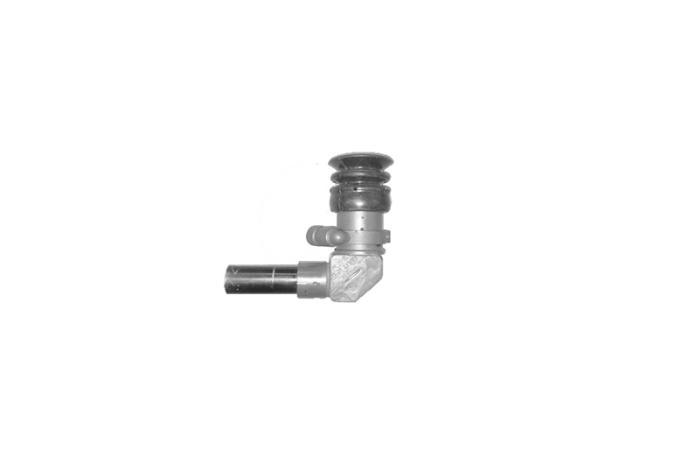

ELBOW TELESCOPE M109

Stock Number : 1240-00823-5612

< SPECIFICATION >
 Length 43/4 inch
 Width 2 inch
 Height 37/8 inch
 Weight 0.45 lb
 Power 4 x
 Field of View 10°
 Exit Pupil Diameter 0.150 inch
 Effective Focal Length
    Objective 3.200 inch
    Eyepiece 0.800 inch
 Eyepiece Setting -0.75 ~ -1.0 diopter
 Clear Eye Distance 0.560 inch
