Product Name Panoramic Telescope
Model M12A7C, M12A7H, M12A7S
Series Military
Catalog
Product Description

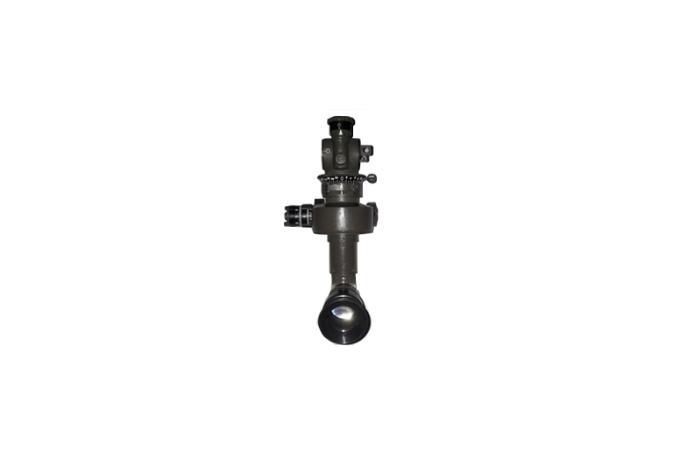

PANORAMIC TELESCOPE M12A7C/M12A7H/M12A7S

Stock Number : 1240-00768-7260
Stock Number : 1240-00344-4633
Stock Number : 1240-00917-6433

Used on 105MM and 155MM howitzers.

 < SPECIFICATION >
 Height 93/4 inch
 Weight 51/2 lb
 Power 4 X
 Field of View 10°
 Exit Pupil Diameter 0.165 inch
 Effective Focal Length
   Objective 4.004 inch
   Eyepiece 1.000 inch
 Azimuth Range 6400 mils
 Elevation Range 600 mils
