Product Name Panoramic Telescope
Model M117A2
Series Military
Catalog
Product Description

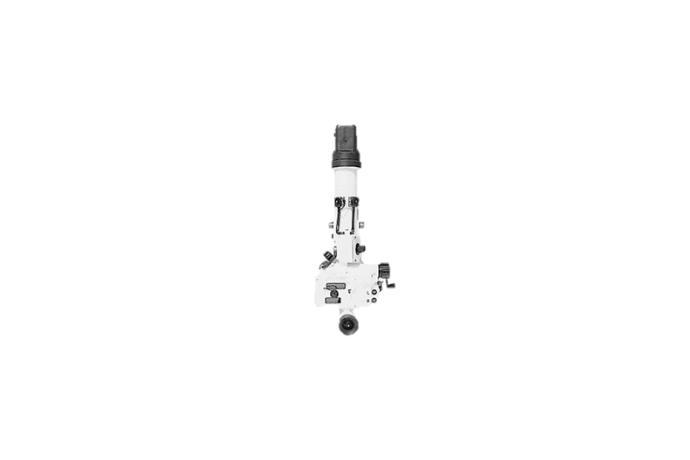

PANORAMIC TELESCOPE M117A2

Stock Number : 1240-00106-7754

Used on howitzer, light, self-propelled: 105MM, M108 and howitzer, medium, self-propelled:155MM, M109.

 < SPECIFICATION >
 Length 9 inch
 Width 81/4 inch
 Height 20 inch
 Weight 14 lb 6 oz
 Power 4 x
 Field of View 10°
 Exit Pupil Diameter 0.165 inch
 Effective Focal Length
    Objective 4.004 inch
    Eyepiece 1.250 inch
 Clear Eye Distance 0.700 inch
 Deflection(Azimuth) 6400 mils
 Elevation ±300 mils
