Head mounting type multi temperature transmitter

Model Name

R911

Series

TG Sensor•Heater•Transmitter

View AllView All Series

Data

Catalog-WISE-TG Sensor•Heater•Transmitter-Head mounting type multi temperature transmitter-R911

Manufacturer information

WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

WISE CONTROL

Brand

SKU

141799

Product Name

Head mounting type multi temperature transmitter

Model Name

R911

Size

Weight

Product Details

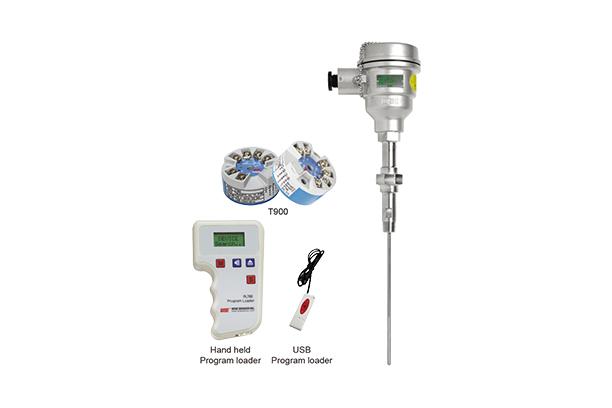

Head mounting type multi temperature transmitter_R911 (with T900)

Service intended

T900 series temperature transmitters are designed to fit into a standard molded terminal heads used on RTD and thermocouple assemblies to provide a 4-20 mA transmission signals. It is a cost effective solution for all temperature measuring process. It is accurate, durable and reliable. Numerous configurations for measurement in many deferent mediums are offered. Generally the transmitter produces a linear 4-20 mA output carried on a two-wire system. The transmitter is supplied factory calibrated, but also has zero and span potentiometers for a field adjustment.

Advantages

■ Two wire 4-20 mA current output signals
■ Universal input signals
- RTD temperature sensor
- T/C elements
- mV, V, mA, DC signals
■Programmable function setting
- Input signal type
- Measuring range
- Burnout Low/High setting
- mA output offset
■ Excellent accuracy and a long term stability
■ Low cost effective

Standard features

Electrical specification	Excitation voltage : 18~30 V DC (Noise range:20 mVp-p) Load resistance max : 600 Ω with 24 V Influence of excitation : 0.01 % FSO/V Reverse polarity : Protected Shock resistance : No change in performance after 20Gs Vibration : 0.1 g max. Response time (10 ~ 90 %) : ±500 mSec. Adjustment range : Free
Performance specification	Accuracy : ±0.2 % FSO Non - linearity : Better than 0.10 % FSO Repeatability : Better than 0.05 % FSO Long term stability : Better than 0.05% FSO per month Cutoff frequency : ±1 kHz Ambient temperature limits : -40~65 ℃ Ambient humidity limits : 5~95 % R.H
Input	Temperature sensor type : See table "Sensor type, range and accuracy" Signal source : See table "Sensor type, range and accuracy"
Output	Current output : 4 ~ 20 mA loop powered Electrical connection type : 2-wire technique Full scale output signal : 20 mA ±0.2 % Zero measured output : 4 mA ±0.03 % Sensor burnout : High (20.5 mA DC) or Low (3.9 mA)
Certificates	KCS Ex d IIC T6
