Gauge Protector A070 by WISE - Komachine Supplier Profile and Product List

WISE

1/1

WISE

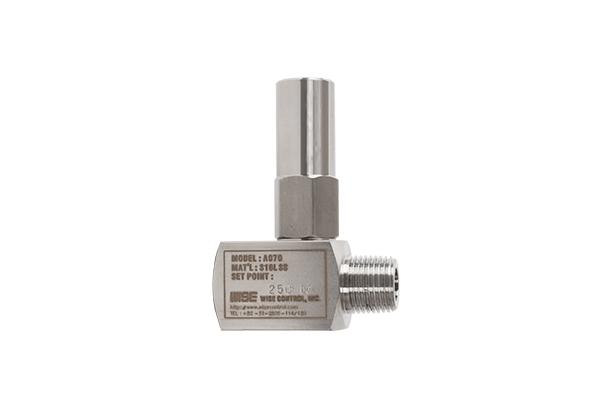

Gauge Protector

Model

Series

Accessories

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Service intended

It is used for protecting the gauges from over pressure. The gauge protector closes at the adjusted set-point pressure.

Accuracy	±10% of setting pressure
Standard features	Max. static pressure up to 25 MPa Max. working pressure Stainless steel • Code H : Up to 25 MPa, at 20 ºC, G½" U : Up to 25 MPa, at 20 ºC, G½" • Code P,L, M, N : Up to 10 bar, at 20 ºC, G½" Max. working temperature 80 ºC ※ This product's Max. working temperature could be varied depending on its working pressure and temperature.

Download

Datasheet-WISE-Accessories-Gauge Protector-A070

Manual-WISE-Accessories-Gauge Protector-A070
