WISE

Field Junction Box

Model

Series

Accessories

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Service intended

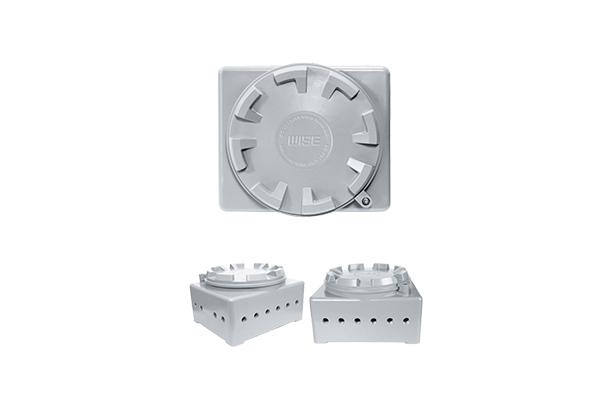

The Field junction box range of enclosures delivers an outstanding performance in the severest conditions and meet the needs of the increasingly stringent requirements of hazardous area applications that can be found in particular in the process and energy industries. Therefore, B500 Series is explosion-proof type product that is designed to be used in a critical danger zone by acquiring IECEx and ATEX certificates.

Certificates

ATEX
- II 2G Ex d ia/ib IIC T6 Gb
- II 2G Ex e IIC T6 Gb
- II 2D Ex tb IIIC T85 ˚C Db
IECEx
- Ex d ia/ib IIC T6 Gb
- Ex e IIC T6 Gb
- Ex tb IIIC T85 ˚C Db

Standard features

Ambient temperature	-40 ~ +70 ˚C
Degree of protection	EN 60529 / IEC 529 IP67/IP68
Field junction box size (mm)	250(W) x 200(L) x 209(H) 350(W) x 300(L) x 210(H)
Material	Cast aluminium alloy
Electrical data	Max. voltage : 250 V Max. current : 20 A ● RTD - Operating current : 1 mA, Max 5 mA ● Thermocouple - Resistance : 0.4 ~ 40 ohm/m - Voltage : 0 ~ 80 mV ● Direct current : Max DC 36 V 20 mA

Download

Datasheet-WISE-Accessories-Field Junction Box-B500 series
