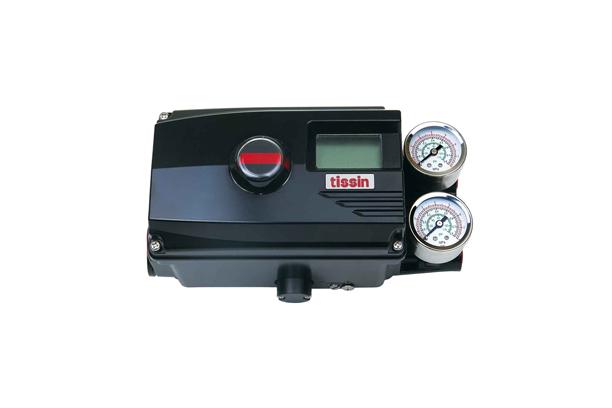

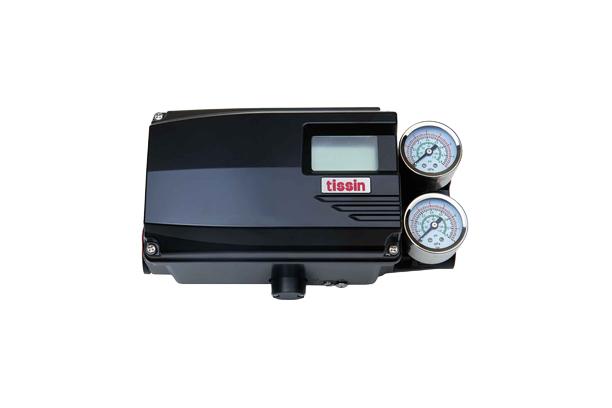

Smart Valve Positioner (Intrinsically safe type)
Model Name
TS800L
Series
Smart Valve Positioner
Data
Catalog-tissin-Smart Valve Positioner (Intrinsically safe type)-TS800L, TS800R
Manufacturer information
provider logo
TISSIN

Professional brand of control valve accessories.

Problem with product info?
Update request
Manufacturer
TISSIN
Brand
-
SKU
140572
Product Name
Smart Valve Positioner (Intrinsically safe type)
Model Name
TS800L, TS800R
Size
-
Weight
-
Product Details

Description

TS800 Smart Valve Positioner control valve stroke in response to input signal of 4-20mA from control panel, DCS, or calibrator.



Features

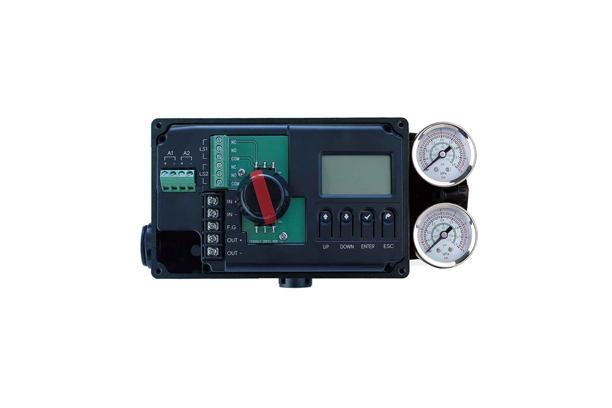

  • LCD and 4 button local control
  • Quick and easy calibration
  • PST and alarm function
  • Auto/Manual switch included
  • Modularization of the internal parts
  • IP66 / NEMA4X
  • Improvement of valve control speed by applying large flow pilot valve
  • Strong vibration resistance and impact resistance



Specification

MODEL TS800L  TS800R
Input signal 4~20mA DC
Impedance 500Ω (20mA DC)
Supply pressure 0.14~0.7MPa
Stroke 10~150mm 0~90º
Air connection PT1/4, NPT1/4
Gauge connection PT1/8, NPT1/8
Conduit G(PF)1/2, NPT1/2
Explosion proof type EX ia IIC T5/T6
Enclosure IP66
Ambient Temp. Acting Temp. -30℃~85℃(Standard type), -40℃ ~ 85℃(Low temp type)
Explosion Temp. -40℃~60℃(T5) / -40℃~40℃(T6)
Linearity ±0.5% F.S.
Sensitivity ±0.2% F.S.
Hysteresis ±0.5% F.S.
Repeatability ±0.3% F.S.
Air consumption Below 2.3LPM (Sup.=0.14MPa)
Flow capacity Over 100LPM (Sup.=0.14Mpa)
Material Aluminum die cast
Weight 2.2kg
