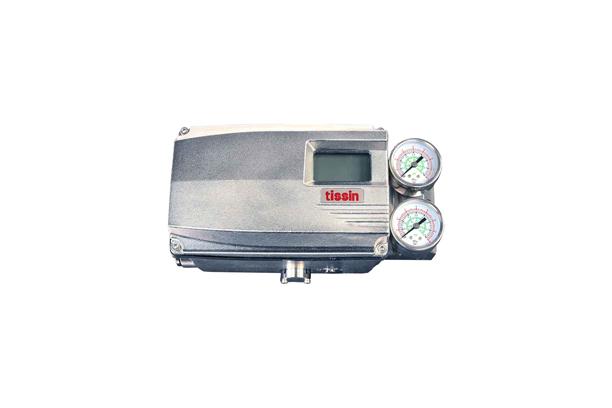

Smart Valve Positioner (Intrinsically safe type (STS316))

Model Name

TS805

Series

Smart Valve Positioner

View AllView All Series

Data

결선도면-티씬-스마트밸브포지셔너 (본질안전형 (STS316))-TS805, TS805L,TS805R

Manufacturer information

TISSIN

Professional brand of control valve accessories.

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

TISSIN

Brand

SKU

140575

Product Name

Smart Valve Positioner (Intrinsically safe type (STS316))

Model Name

TS805, TS805L, TS805R

Size

Weight

Product Details

Description

TS805 Smart Valve Positioner control valve stroke in response to input signal of 4-20mA from control panel, DCS, or calibrator.

Featues

LCD and 4 button local control
Quick and easy calibration
PST and alarm function
Auto/Manual switch included
Modularization of the internal parts
IP66 / NEMA4X
Improvement of valve control speed by applying large flow pilot valve
Strong vibration resistance and impact resistance

Specifications

MODEL		TS805
Input signal		4~20mA DC
Impedance		500Ω (20mA DC)
Supply pressure		0.14~0.7MPa
Stroke		10~150mm	0~90º
Air connection		PT1/4, NPT1/4
Gauge connection		PT1/8, NPT1/8
Conduit		G(PF)1/2, NPT1/2
Explosion proof type		EX ia IIC T5/T6
Enclosure		IP66
Ambient Temp.	Acting Temp.	-30℃~85℃(Standard type), -40℃ ~ 85℃(Low temp type)
Ambient Temp.	Explosion Temp.	-40℃~60℃(T5) / -40℃~40℃(T6)
Linearity		±0.5% F.S.
Sensitivity		±0.2% F.S.
Hysteresis		±0.5% F.S.
Repeatability		±0.3% F.S.
Air consumption		Below 2.3LPM (Sup.=0.14MPa)
Flow capacity		Over 100LPM (Sup.=0.14Mpa)
Material		Stainless steel 316
Weight		4.2kg
