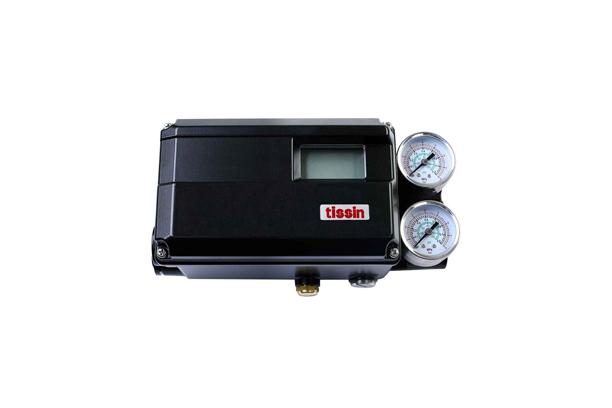

Smart Valve Positioner (Fail freeze type)

Model Name

TS700

Series

Smart Valve Positioner

View AllView All Series

Data

결선도면-티씬-스마트밸브포지셔너 (Fail freeze 형)-TS700, S700L, TS700R

Manufacturer information

TISSIN

Professional brand of control valve accessories.

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

TISSIN

Product Type

Machine

Brand

SKU

140574

Product Name

Smart Valve Positioner (Fail freeze type)

Model Name

TS700, S700L, TS700R

Size

Weight

Product Details

Description

TS700 Smart Valve Positioner control valve stroke in response to input signal of 4-20mA from control panel, DCS, or calibrator.

Features

Fail freeze function
Zero air consumption when standby signal
Prevents circuit board corrosion by external air exhaust design
Built in air filter (5 micron) for protect PIEZO valve
LCD and 4 button local control
Quick and easy calibrationPST and alarm function
Built-in self-diagnostic function
Strong vibration resistance and impact resistance

Specifications

MODEL		TS700
Input signal		4~20mA DC
Impedance		500Ω (20mA DC)
Supply pressure		0.14~0.7MPa
Stroke		10~150mm(Linear), 0~90℃(Rotary)
Air connection		PT1/4, NPT1/4, G1/4
Gauge connection		PT1/8, NPT1/8
Conduit		G1/2, NPT1/2,M20
Explosion proof type		In progress
Enclosure		IP66(EN60529)
Ambient Temp.	Standard type	-25℃~80℃
	Low temp type	-40℃~80℃
	Explosion proof	-40℃~60℃(T5)/-40℃~40℃(T6)
	LCD operating	-30℃~85℃
Linearity		±0.5% F.S.
Sensitivity		±0.2% F.S.
Hysteresis		±0.5% F.S.
Repeatability		±0.3% F.S.
Air consumption		Below 0.01LPM (Sup.=0.14MPa)
Required air quality		Class 4(ISO 8573-1)
Flow capacity		Over 75LPM (Sup.=0.14Mpa)
Material		Aluminum die cast
Weight		1.5kg
