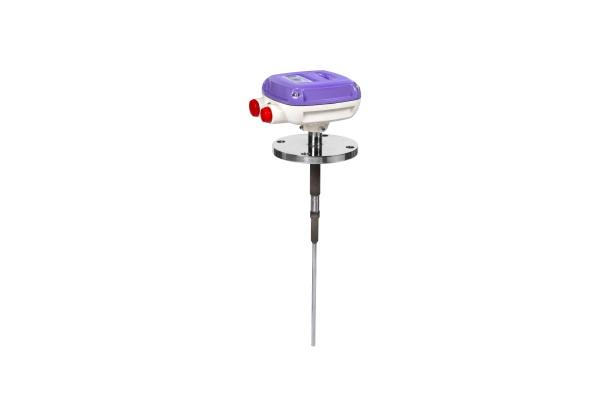

product Image

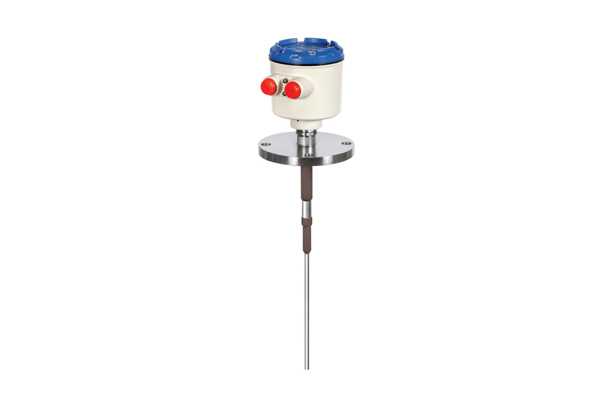

product Image
Radio Frequency Type Level Switch
Model Name
SRF Series
Series
Level Switch
Data
Catalog-Seojin instech-Radio frequency type level switch (SRF)
Manufacturer information
provider logo
SEOJIN INSTECH

Level sensor, Switch, Siemens, Transmitter, Ultrasonic, Radar, Flowmeter, Water level gauge, Orifice

Problem with product info?
Update request
Manufacturer
SEOJIN INSTECH
Product Type
Machine
Brand
-
SKU
131439
Product Name
Radio Frequency Type Level Switch
Model Name
SRF Series
Size
-
Weight
-
Product Details
TYPE & MODEL Radio Frequency Type Level Switch
PRINCIPLE Its measuring principle is similar to that of page 7, the electrostatic capacity type(SCAP), but the electrostatic capacity type can only work when the installed hopper is a metal connected to the earth pole, while this device comprises three poles in itself, and is designed to operate even in insulated hoppers or plastic tanks. Not like the method of calculating the static capacity value, it generates pulse type RF frequency itself, and detects the existence of the measured substance.
RANGE TEMPERATURE PRESSURE
  • Standard
    Nipple type : 381mm
    Flange type : 371mm
  • Optional : Within 1000mm
  • Standard : -20℃∼80℃
  • Optional : -20℃∼500℃
  • AMB.
FEATURES OUTPUT APPLICATION
  • Designed as a high temperature type
  • Easy to control
  • Easy installation
  • Separable head and probe
  • Automatic compensation function embedded
  • Explosion proof type possible
    (Ex d ⅡB T4)
  • SRF-600 : 10mA/20mA DC
  • SRF-900 : 1 DPDT
  • Contact capacity : 5A 250V AC
  • Thermal power generation, Iron work facility
  • Desulfurization facility, Dust trap facility, Fly Ashy facility
  • Cement, Glass industry
  • Chemical/Petroleum industry
  • Food, Feed, Grain, Pulp, Paper, Water purification, Sewage processing industry
  • Pharmaceuticals
  • Others
POWER SUPPLY
  • SRF-600 : 16∼30V DC
  • SRF-900 : 110/220V AC, 60Hz
REMARK Mat'l : 304/316SS, PPS, Ceramic
INDUSTRY Industrial Plant, Petrochemistry

MODEL: SRF-600-A-1-A-1-A-2, SRF-600-A-2-A-1-A-2, SRF-600-A-2-C-1-A-2, SRF-600-A-3-B-1-A-2, SRF-600-A-3-C-1-A-2, SRF-600-B-3-C-1-A-2, SRF-900-A-1-A-1-A-2, SRF-900-A-2-A-1-A-2, SRF-900-A-2-C-1-A-2, SRF-900-A-3-B-1-A-2, SRF-900-A-3-C-1-A-2, SRF-900-B-3-C-1-A-2
