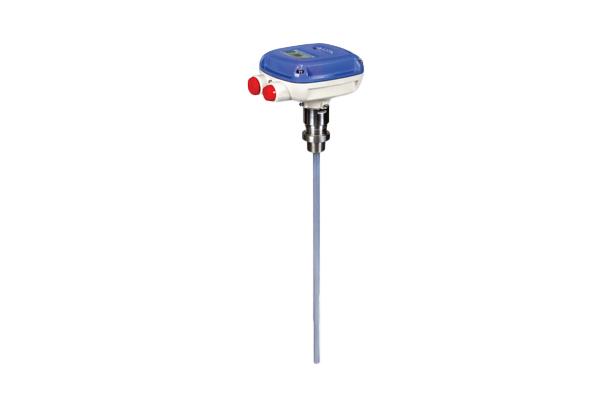

Capacitance Type Level Transmitter
Model Name
SCAP-IV Series
Series
Level Transmitter
Data
Catalog-Seojin instech-Capacitance type level transmitter (SCAP-IV)
Manufacturer information
provider logo
SEOJIN INSTECH

Level sensor, Switch, Siemens, Transmitter, Ultrasonic, Radar, Flowmeter, Water level gauge, Orifice

Problem with product info?
Update request
Manufacturer
SEOJIN INSTECH
Product Type
Machine
Brand
-
SKU
131515
Product Name
Capacitance Type Level Transmitter
Model Name
SCAP-IV Series
Size
-
Weight
-
Product Details
TYPE & MODEL Capacitance Type Level Transmitter
PRINCIPLE The static capacity value, according to the dielectric constant change of the measured substance generated between the measured electrode and the earth electrode, is serially detected, and changed into an electric current signal of DC 4∼20mA to be put out. It is an all purpose meter controller that can measure fluids, powders, and interfaces.
RANGE TEMPERATURE PRESSURE
  • Standard
    Rod type: 1m, Wire type: 5m
  • Optional
    Rod type: 4m, Wire type: 30m
  • -20℃∼60℃
  • AMB.
FEATURES OUTPUT APPLICATION
  • Able to measure both fluids and powders
  • Two-wire type; reduction of installation cost
  • Corrosion-proof and chemical-proof PTFE material
  • The structure of the detection part is simple, Without a mobile part; optimal for sanitation facilities such as food and beverage
  • Selection of various detection part structure according to the temperature/pressure
  • Explosion proof type possible
    (Ex d ⅡB T4/Ex ia ⅡB T6)
  • 4∼20mA DC
  • PE, PP, PC,PVC Powder Tank
  • Interface of Two Fluid
POWER SUPPLY
  • 24V DC
REMARK Mat'l : 304/316SS (PTFE Tubing)
INDUSTRY Industrial Plant, Petrochemistry

MODEL: SCAP-IV, SCAP-IV-A-1-A-1-A-1
