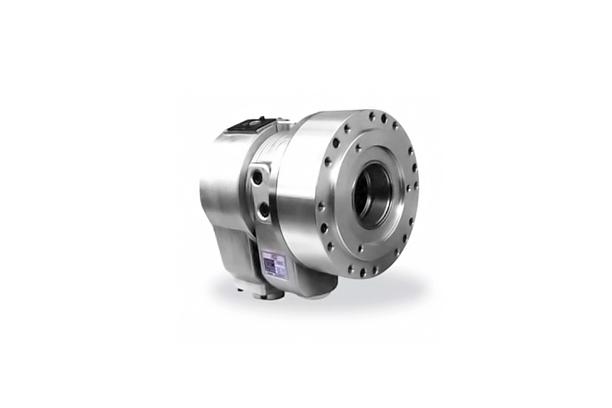

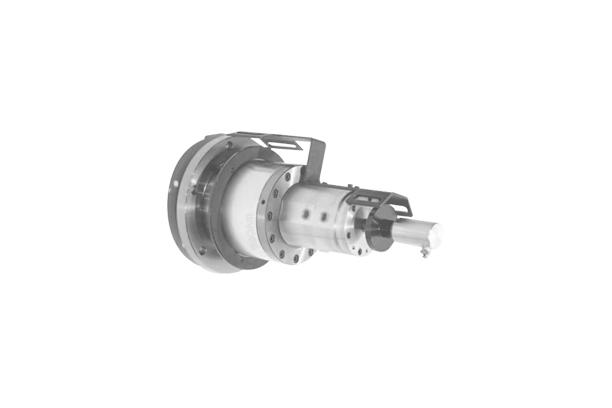

HYDRAULIC DOUBLE PISTON CYLINDER (SM-YDP)
Model Name
SM-YDP 125
Data
-
Manufacturer information
SEOAM
Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126736
Product Name
HYDRAULIC DOUBLE PISTON CYLINDER (SM-YDP)
Model Name
SM-YDP 125, SM-YDP 140, SM-YDP 160
Size
-
Weight
-
Product Details
Feature
• This cylinder has two pistons. Those are operationg by inclividually.
• Mainly the one piston using to clamping the process material. However, the other one is using to support Clamp. Centering, or process material's Ejector.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Piston surface area extend | Piston surface area retract | Max operation pressure |
| SM-YDP 125 | 5000 | 43 | 113/89 | 47/40 | 35 |
| SM-YDP 140 | 4500 | 46 | 144/120 | 47/40 | 35 |
| SM-YDP 160 | 4000 | 52 | 191/167 | 47/40 | 35 |
Spec Model | GD2 | Cylinder Dia Piston 1 | Cylinder Dia Piston 2 | Piston Stroke Piston 1 | Piston Stroke Piston 2 | |
| SM-YDP 125 | 1.27(0.13) | 125 | 80 | 35 | 20 | |
| SM-YDP 140 | 1.76(0.18) | 140 | 80 | 35 | 20 | |
| SM-YDP 160 | 2.45(0.25) | 160 | 80 | 50 | 20 |
Dimension
Item Model | A | C | D | E | F | N Max | N Min |
| SM-YDP 125 | 258 | 228 | 180 | 216 | 173 | 67 | 32 |
| SM-YDP 140 | 273 | 243 | 195 | 231 | 173 | 67 | 32 |
| SM-YDP 160 | 293 | 263 | 215 | 251 | 188 | 85 | 35 |
Item Model | O Max | O Min | P | Bro | L MAX | L MIN | |
| SM-YDP 125 | 62 | 42 | 6-M10 | 246 | 57 | 37 | |
| SM-YDP 140 | 62 | 42 | 6-M10 | 261 | 57 | 37 | |
| SM-YDP 160 | 65 | 45 | 6-M10 | 281 | 57 | 37 |
