This product is manufactured by
SEOAM

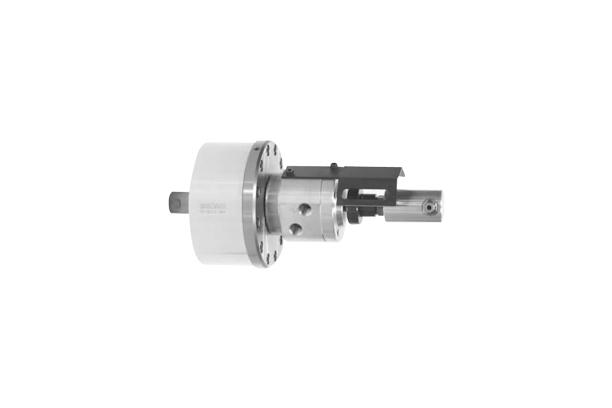

POWER CYLINDER WITH THROUGH HOLE (SM-YTR)
Model Name
SM-YTR 100
Data
-
Manufacturer information
SEOAM
Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126735
Product Name
POWER CYLINDER WITH THROUGH HOLE (SM-YTR)
Model Name
SM-YTR 100, SM-YTR 125, SM-YTR 140, SM-YTR 200, SM-YTR 250
Size
-
Weight
-
Product Details
Feature
• It is a solid Cylinder with one pipe way in central parts. Therefore, It is able to Air Sensor or Coolant Blowing structure.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke |
| SM-YTR 100 | 5500 | 6.3 | 0.49(0.050) | 100 | 20 |
| SM-YTR 125 | 5000 | 8.4 | 0.88(0.09) | 125 | 25 |
| SM-YTR 140 | 4500 | 11.3 | 1.57(0.16) | 140 | 35 |
| SM-YTR 200 | 4000 | 22.3 | 4.51(0.46) | 200 | 35 |
| SM-YTR 250 | 3500 | 25.2 | 8.33(0.85) | 250 | 60 |
Spec Model | Piston surface area extend | Piston surface area retract | Max operation pressure | Total leakage | |
| SM-YTR 100 | 75.4 | 70.5 | 35 | 1 | |
| SM-YTR 125 | 119.5 | 112.4 | 35 | 1 | |
| SM-YTR 140 | 150.8 | 141.2 | 35 | 1 | |
| SM-YTR 200 | 309.4 | 293.4 | 35 | 1 | |
| SM-YTR 250 | 515 | 482 | 35 | 1 |
Dimension
Item Model | A | B | D | E | F | H | J | K | L |
| SM-YTR 100 | 135 | 100 | 30 | 81.5 | 98 | 21 | 30 | 22 | M20XP2.5 |
| SM-YTR 125 | 160 | 130 | 30 | 86.5 | 98 | 21 | 30 | 22 | M20XP2.5 |
| SM-YTR 140 | 175 | 130 | 35 | 106.5 | 98 | 25 | 40 | 22 | M24XP3.0 |
| SM-YTR 200 | 245 | 145 | 55 | 120.5 | 98 | 37 | 70 | - | M36XP4.0 |
| SM-YTR 250 | 305 | 220 | 65 | 170 | 98 | 44 | 80 | - | M42XP3.0 |
Item Model | M | N Max | N Min | O Max | O Min | P | R Max | R Min | Cro | |
| SM-YTR 100 | M8,DP18 | 24.5 | 4.5 | 231 | 211 | 5 | 45 | 25 | 80 | |
| SM-YTR 125 | M10,DP20 | 29.5 | 4.5 | 241 | 216 | 5 | 50 | 25 | 110 | |
| SM-YTR 140 | M10,DP20 | 39.5 | 4.5 | 271 | 236 | 5 | 60 | 25 | 110 | |
| SM-YTR 200 | M16,DP29 | 39.5 | 4.5 | 285 | 250 | 15 | 60 | 25 | 120 | |
| SM-YTR 250 | M20,DP35 | 64.5 | 4.5 | 359.5 | 299.5 | 20 | 85 | 25 | 160 |
