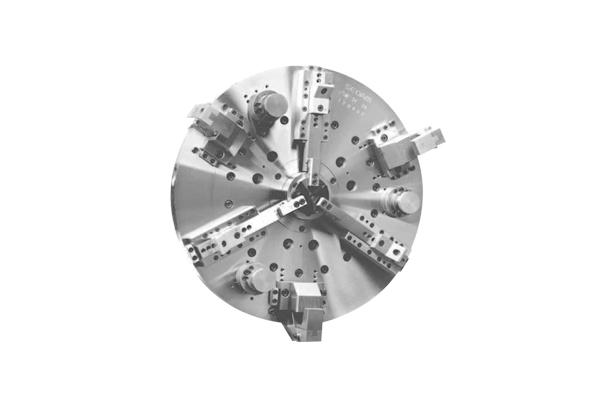

AL-WHEEL CHUCK (SM-ALW)
Model Name
SM-ALW 20
Series
Special Chuck
Data
-
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126732
Product Name
AL-WHEEL CHUCK (SM-ALW)
Model Name
SM-ALW 20, SM-ALW 22, SM-ALW 26, SM-ALW 30
Size
-
Weight
-
Product Details

Feature

• This is a exclusive chuck of processing the AL-Wheel.

• The 3-Jaws is centering the AL-Wheel and the Finger Jaw is clamping.

• It needs double Cylinder.



Outward Drawing





Technical data and specifications

Specifications

Spec
Model
Spindle nose NO.Jaw stroke(Diameter) mmPlunger stroke mmMax. permissible input force KN(kgf)Max. static gripping force KN(kgf)Max. Permissible speed r.p.m
SM-ALW 20A2-8273529.4(3000)55(5610)2,800
SM-ALW 22A2-8273529.4(3000)73(7446)2,600
SM-ALW 26A2-11273529.4(3000)86(8772)2,200
SM-ALW 30A2-11273529.4(3000)86(8772)1,800

Spec
Model
weight(With standard soft jaws)matching cylinderGD2Wheel Size Range(Max)Wheel Size Range(Min)
SM-ALW 20120YDP12530.0(3.06)1612
SM-ALW 22140YDP12540.0(4.1)1813
SM-ALW 26160YDP12545.0(4.59)2014
SM-ALW 30240YDP140100.0(10.2)2216



Dimension

Item
Model
ABDEFG
SM-ALW 205003009060M50X92.0141
SM-ALW 225503309060M50XP2.0141
SM-ALW 266003809060M50X92.0141
SM-ALW 306603809060M50XP2.0141

Item
Model
HCroN1GemXL-Size R-2(CL)GemXL-Size R-3(UCL)
SM-ALW 20141220218.314130
SM-ALW 221412520243.714130
SM-ALW 26141300269.114137
SM-ALW 30141300294.514137
