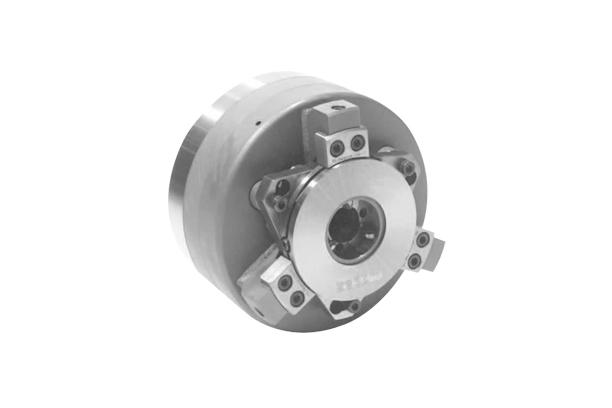

DIAPHRAGM CHUCK (SM-DPM)
Model Name
SM-DPM 06, SM-DPM 08, SM-DPM 10, SM-DPM 12, SM-DPM 16
Size
-
Weight
-
Product Details
Feature
• This chuck using to concerned about transforming by the process materials thin thickness or many repetition degree(precision finishing, grinding)
• It is clamping by the spring board's elasticity.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min |
| SM-DPM 06 | 3Jaw | 5 | 3 | 76 |
| SM-DPM 08 | 3Jaw, 6Jaw | 5 | 12 | 120 |
| SM-DPM 10 | 3Jaw, 6Jaw | 5 | 25 | 152 |
| SM-DPM 12 | 3Jaw, 6Jaw | 5 | 75 | 203 |
| SM-DPM 16 | 6Jaw | 5 | 140 | 270 |
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | |
| SM-DPM 06 | 3800 | 14.5 | YAS-100 | |
| SM-DPM 08 | 3000 | 23 | YAS-125 | |
| SM-DPM 10 | 2600 | 35 | YAS-150 | |
| SM-DPM 12 | 2200 | 58 | YAS-150 | |
| SM-DPM 16 | 1600 | 58 | YAS-150 |
Dimension
Item Model | A | B | D | E | F | H |
| SM-DPM 06 | 200 | 175 | 160 | 92 | 94 | 36 |
| SM-DPM 08 | 250 | 225 | 200 | 97 | 99 | 36 |
| SM-DPM 10 | 305 | 275 | 250 | 102 | 104 | 46 |
| SM-DPM 12 | 375 | 340 | 280 | 107 | 109 | 50 |
| SM-DPM 16 | 475 | 435 | 400 | 140 | 142 | 55 |
Item Model | J | K | L | Cro | G MAX | G MIN | |
| SM-DPM 06 | 17 | 6-M10 | M10 | 110 | 36 | 31 | |
| SM-DPM 08 | 18 | 6-M10 | 160 | 36 | 31 | ||
| SM-DPM 10 | 20 | 6-M12 | M24 | 220 | 42 | 37 | |
| SM-DPM 12 | 22 | 6-M12 | M27 | 280 | 55 | 50 | |
| SM-DPM 16 | 25 | 6-M16 | M30 | 320 | 65 | 60 |
