This product is manufactured by
SEOAM
Manufacturer information
SEOAM
Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126719
Product Name

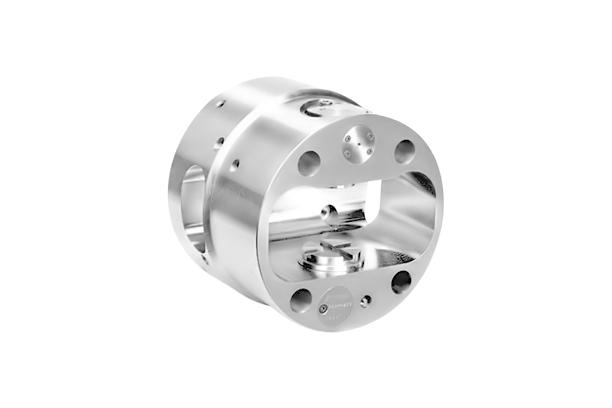

90°ANGLE AUTO INDEX CHUCK (SM-HSR)
Model Name
SM-HSR 225, SM-HSR 250, SM-HSR 275, SM-HSR 315, SM-HSR 350, SM-HSR 400, SM-HSR 500
Size
-
Weight
-
Product Details
Feature
• This chuck using to complete finishing of the processing materials 4 sides or 8 sides by one time clamping.
• It is able to automatic indexing of 90° or 45°, Even if the machine spindle under rotating.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | weight(With standard soft jaws) | Gripping force | Lathe Spindle |
| SM-HSR 225 | 29 | 12.4(1.270) | ASA No.6~8 |
| SM-HSR 250 | 44 | 17(1,730) | ASA No.6~8 |
| SM-HSR 275 | 56 | 25(2,550) | ASA No.6~8 |
| SM-HSR 315 | 75 | 25(2,550) | ASA No.6~8 |
| SM-HSR 350 | 100 | 25(2,550) | ASA No11 |
| SM-HSR 400 | 145 | 34.6(3,530) | ASA No11 |
| SM-HSR 500 | 230 | 45.8(4,670) | ASA No.15 |
Spec Model | Main spindle bore speed | GD2 | |
| SM-HSR 225 | Over 45 | 8.82(0.9) | |
| SM-HSR 250 | Over 45 | 16.66(1.7) | |
| SM-HSR 275 | Over 45 | 27.44(2.8) | |
| SM-HSR 315 | Over 55 | 49(5.0) | |
| SM-HSR 350 | Over 55 | 78.4(8.0) | |
| SM-HSR 400 | Over 55 | 147(15.0) | |
| SM-HSR 500 | Over 55 | 248.92(25.4) |
Dimension
Item Model | A | C | D | F | G | H | K |
| SM-HSR 225 | 225 | 149 | 154 | 35 | 84 | 84 | 46 |
| SM-HSR 250 | 250 | 185 | 190 | 40 | 113 | 113 | 46 |
| SM-HSR 275 | 275 | 208 | 213 | 48 | 125 | 125 | 57 |
| SM-HSR 315 | 315 | 227 | 232 | 50 | 136 | 136 | 70 |
| SM-HSR 350 | 350 | 235 | 240 | 50 | 148 | 145 | 84 |
| SM-HSR 400 | 400 | 254 | 259 | 60 | 160 | 165 | 100 |
| SM-HSR 500 | 500 | 301 | 308 | 68 | 200 | 205 | 133 |
Item Model | L | M | R | S | T | Bro | |
| SM-HSR 225 | 58 | 14.5 | 133.4 | 4-M12 | 25 | 185 | |
| SM-HSR 250 | 55 | 20 | 133.4 | 4-M12 | 25 | 210 | |
| SM-HSR 275 | 67 | 20.5 | 171.4 | 4-M16 | 25 | 210 | |
| SM-HSR 315 | 85 | 22 | 171.4 | 4-M16 | 235 | ||
| SM-HSR 350 | 102 | 23 | 235 | 4-M20 | 30 | 290 | |
| SM-HSR 400 | 114 | 30 | 235 | 4-M20 | 30 | 290 | |
| SM-HSR 500 | 157 | 35 | 235/330.2 | 4-M20/4-M24 | 35 | 380 |
