Product Name

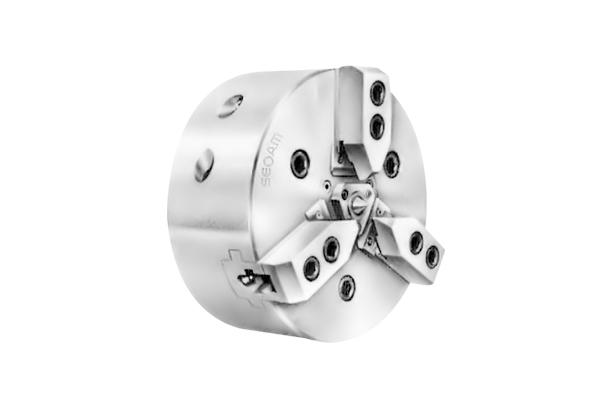

3-JAW COMPENSATING CHUCK (SM-COS)
Model Name
SM-COS 06, SM-COS 08, SM-COS 10, SM-COS 12
Size
-
Weight
-
Product Details
Feature
• This is a Shaft processing Chuck only.
• It can using the Spring Center. When there are cross sections's distance control. And also, It can using the Dead Center. When they required fixation degree about the Center.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
| SM-COS 06 | 7 | 15 | 33 | 15 | 11.8 |
| SM-COS 08 | 2 | 8 | 38 | 18 | 17.7 |
| SM-COS 10 | 10 | 25 | 52 | 22 | 23.5 |
| SM-COS 12 | 10 | 25 | 73 | 25 | 29.4 |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | GD2 | |
| SM-COS 06 | 23.5 | 2800 | 16 | YAS-80 | 0.57(0.058) | |
| SM-COS 08 | 41.2 | 2800 | 25 | YAS-100 | 1.27(0.13) | |
| SM-COS 10 | 58.8 | 2400 | 37.5 | YAS-125 | 2.94(0.3) | |
| SM-COS 12 | 73.5 | 2000 | 59.7 | YAS-125 | 6.86(0.7) |
Dimension
Item Model | A | C | D | E | F | G | H | J | K | L | N | O |
| SM-COS 06 | 175 | 130 | 70 | 60 | 10.4 | 10 | 9 | 5 | 90 | 22 | 38 | 27.5 |
| SM-COS 08 | 210 | 130 | 82 | 70 | 10.4 | 10 | 9 | 5 | 100 | 22 | 38 | 30 |
| SM-COS 10 | 254 | 150 | 92 | 80 | 12.7 | 12 | 11 | 5 | 110 | 22 | 38 | 33 |
| SM-COS 12 | 304 | 170 | 98 | 85 | 12.7 | 12 | 11 | 5 | 125 | 22 | 46 | 36 |
Item Model | P | R | S | U Max | W | X | B1 | M MAX | M MIN | ||||
| SM-COS 06 | 5 | M16 | 3-M16 | 38.8 | 35.3 | 16.5 | 31 | - | 160 | 90 | 47 | 32 | |
| SM-COS 08 | 5 | M16 | 3-M16 | 43.8 | 39.8 | 21 | 35 | - | 160 | 105 | 50.5 | 30.5 | |
| SM-COS 10 | 5 | M20 | 3-M16 | 48.8 | 43.8 | 27.5 | 40 | - | 180 | 120 | 57 | 32 | |
| SM-COS 12 | 5 | M24 | 6-M16 | 50.8 | 45.8 | 39.5 | 45 | 15degee | 216 | 140 | 61 | 36 |
