Product Name

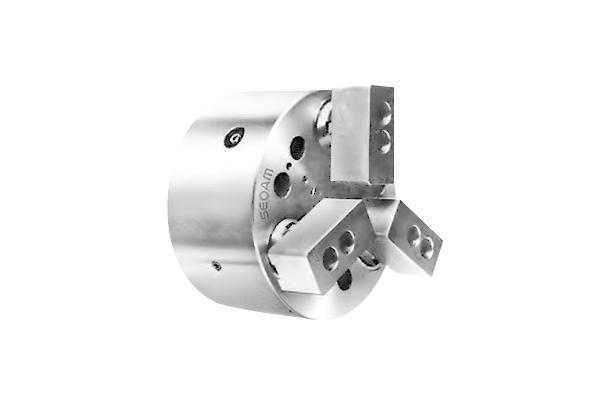

3-JAW OUT-DIA DRAW DOWN CHUCK (SM-ODD)
Model Name
SM-ODD 04, SM-ODD 05, SM-ODD 16, SM-ODD 08, SM-ODD 10, SM-ODD 12
Size
-
Weight
-
Product Details
Feature
• This is a full diameter clamp chuck. which is using at the processing materials finishing process.
• Is is using at important of the parallelization degree. When it does clamping the processing material by pulling.
• It can clamping more bigger than processing material of the Fin Arbor Chuck.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
| SM-ODD 04 | 5 | 7 | 50 | 15 | 5.9(600) |
| SM-ODD 05 | 5 | 7 | 65 | 15 | 9.8(1000) |
| SM-ODD 16 | 7.2 | 10 | 85 | 35 | 14.7(1500) |
| SM-ODD 08 | 7.2 | 10 | 200 | 40 | 24.5(2500) |
| SM-ODD 10 | 10.8 | 15 | 250 | 50 | 34.3(3500) |
| SM-ODD 12 | 10.8 | 15 | 300 | 50 | 44.1(4500) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | |
| SM-ODD 04 | 10.3(1050) | 3500 | 4.5 | YAS-80 | |
| SM-ODD 05 | 16.8(1710) | 3500 | 7.3 | 0.69(0.07) | |
| SM-ODD 16 | 24.7(2520) | 3500 | 13.8 | 1.76(0.18) | |
| SM-ODD 08 | 44.1(4500) | 3000 | 27 | 6.47(0.66) | |
| SM-ODD 10 | 58.8(6000) | 2500 | 45.8 | 14.7(1.5) | |
| SM-ODD 12 | 73.5(7500) | 2000 | 68 | 31.36(3.2) |
Dimension
Item Model | A | C | D | E | H | J | K | L | N Max | N Min |
| SM-ODD 04 | 110 | 80 | 25 | 98 | 5 | 14 | 60 | M10 | 10.5 | 3.5 |
| SM-ODD 05 | 110 | 100 | 28 | 118 | 5 | 14 | 70 | M12 | 10.5 | 3.5 |
| SM-ODD 16 | 165 | 104.8 | 32 | - | 5 | 16 | 85 | M16 | 14 | 4 |
| SM-ODD 08 | 210 | 133.4 | 38 | - | 5 | 18 | 95 | M20 | 14 | 4 |
| SM-ODD 10 | 254 | 171.4 | 50 | - | 5 | 22 | 110 | M24 | 19 | 4 |
| SM-ODD 12 | 304 | 171.4 | 52 | - | 5 | 27 | 125 | M27 | 19 | 4 |
Item Model | O Max | O Min | P | R | S | Bro | F MAX | F MIN | M MAX | M MIN | |
| SM-ODD 04 | 19 | 12 | 20 | 25 | 3-M8 | 60 | 37 | 34.5 | 30 | 23 | |
| SM-ODD 05 | 19 | 12 | 25 | 30 | 3-M8 | 80 | 44 | 41.5 | 35 | 28 | |
| SM-ODD 16 | 33 | 23 | 36 | 35 | 6-M10 | 140 | 58 | 54.4 | 45 | 35 | |
| SM-ODD 08 | 38 | 28 | 36 | 40 | 6-M12 | 190 | 71 | 67.4 | 55 | 45 | |
| SM-ODD 10 | 47 | 32 | 46 | 50 | 6-M16 | 230 | 85 | 79.6 | 65 | 50 | |
| SM-ODD 12 | 47 | 32 | 50 | 60 | 6-M16 | 230 | 102 | 96.6 | 70 | 55 |
