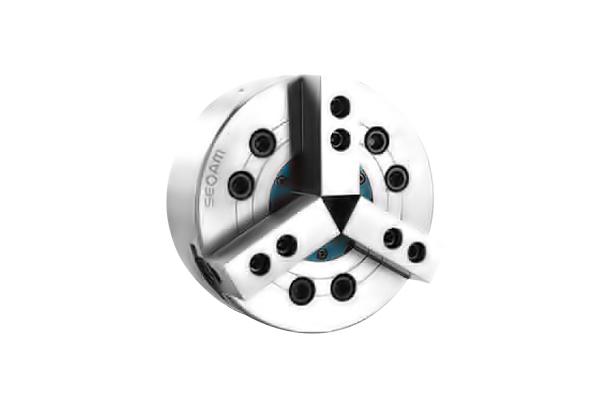

Product Name 3-JAW OPEN CENTER LONG STROKE POWER CHUCK (CAHL)
Model CAHL-08, CAHL-10, CAHL-12
Series Special Chuck
Catalog
Product Description

Feature

• This is a 3-Jaws Hollowness standard style with the Long Stroke.

• It is using to clamping part which needs the Long Stroke structure.



Outward Drawing




Technical data and specifications

Specifications

Spec
Model
Thru-hole(Diameter) mmJaw stroke(Diameter) mmPlunger stroke mmGripping MaxGripping MinMax. permissible input force KN(kgf)
CAHL-084614.5202101340(4080)
CAHL-105218252542150(5100)
CAHL-127721.8303043158(5916)
Spec
Model
Max. static gripping force KN(kgf)Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiamatching cylinder
CAHL-0874(7500)300023.66.90(0.71)YAH-08
CAHL-1093(9500)25004014.85(1.52)YAH-10
CAHL-12108(11000)19006430.00(3.06)YAH-12




Dimension

Item
Model
ABFGHJKLMN MaxN MinO MaxO Min
CAHL-08210955150133.4466-M12152541.734.52710
CAHL-102541105190171.4526-M16173054.545.53112
CAHL-123041276190171.4776-M16183067.456.54212
Item
Model
P MaxP MinQRSTU MaxVWXYZCro
CAHL-0818.5-1.5391420.52M55X23-M660203995170
CAHL-1014.5-10.54416272M60X23-M8663046110220
CAHL-1216-145021282M85X23-M8943051.8111220
