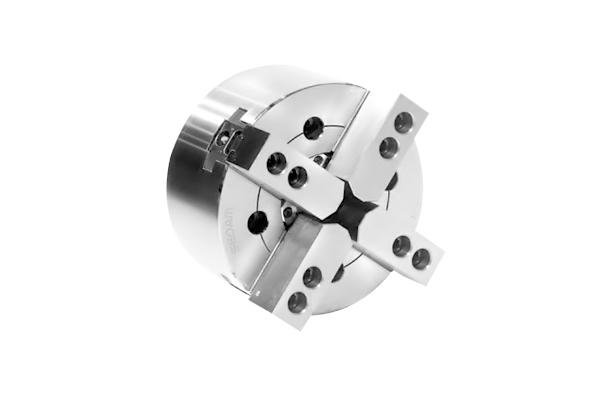

4-JAW CLOSED CENTER POWER CHUCK (CASF)
Model Name
CASF-08, CASF-10, CASF-12
Size
-
Weight
-
Product Details
Feature
• This is a standard chuck style of 4-Jaws Holownness oil pressure Chuck
• It is using to clamping of the square materials or deformed materials. And also, It using at the important time of rounding material's out of roundness shape degree.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
| CASF-08 | 8.8 | 21 | 210 | 23 | 28(2856) |
| CASF-10 | 8.8 | 25 | 254 | 24 | 32.5(3315) |
| CASF-12 | 10.5 | 30 | 304 | 26 | 41.5(4233) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | matching cylinder | |
| CASF-08 | 80(8160) | 4800 | 26 | 5.39(0.55) | YAS-125 | |
| CASF-10 | 115(11730) | 4100 | 37.7 | 11.17(1.20) | TAS-125 | |
| CASF-12 | 156(16014) | 3400 | 59.4 | 28.44(2.90) | YAS-150 |
Dimension
Item Model | A | B | F | G | H | K | L | M | N Max | N Min | O Max | O Min |
| CASF-08 | 210 | 85 | 5 | 150 | 133.4 | 4-M12 | 15 | 25 | 46.5 | 41.9 | 22.5 | 9 |
| CASF-10 | 254 | 89 | 5 | 190 | 171.4 | 4-M16 | 18 | 30 | 51.1 | 46.7 | 30.7 | 11.2 |
| CASF-12 | 304 | 106 | 6 | 190 | 171.4 | 4-M16 | 18 | 30 | 61 | 55.7 | 48.7 | 12.7 |
Item Model | P Max | P Min | Q | R | S | T | U Max | V | Y | Z | Cro | |
| CASF-08 | 127 | 106 | 39 | 14 | 36 | 5 | M20 | 4-M6 | 43 | 95 | 170 | |
| CASF-10 | 158 | 133 | 44 | 16 | 36 | 5 | M20 | 4-M8 | 50 | 110 | 220 | |
| CASF-12 | 163 | 133 | 50 | 18 | 36 | 5 | M20 | 4-M8 | 54 | 111 | 220 |
