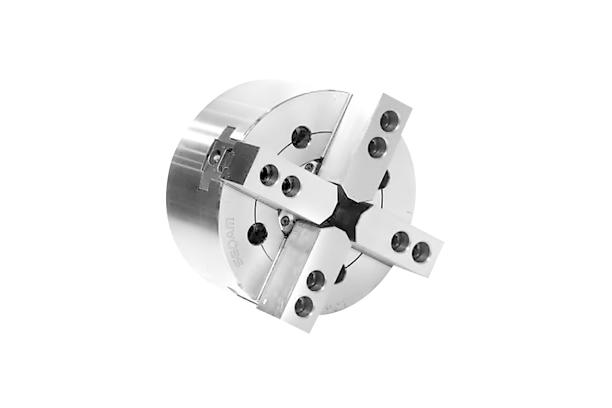

4-JAW OPEN CENTER POWER CHUCK(CAHF)

Model Name

CAHF-08

Series

Special Chuck

View AllView All Series

Data

Manufacturer information

SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SEOAM

Product Type

Machine

Brand

SKU

126696

Product Name

4-JAW OPEN CENTER POWER CHUCK(CAHF)

Model Name

CAHF-08, CAHF-10, CAHF-12, CAHF-15, CAHF-18, CAHF-21, CAHF-24

Size

Weight

Product Details

Feature

• This is a standard chuck style of 4-Jaws Holownness oil pressure Chuck

• It is using to clamping of the square materials or deformed materials. And also, It using at the important time of rounding material's out of roundness shape degree.

Outward Drawing

Technical data and specifications

Specifications

Spec Model	Thru-hole(Diameter) mm	Jaw stroke(Diameter) mm	Plunger stroke mm	Gripping Max	Gripping Min	Max. permissible input force KN(kgf)
CAHF-08	52	7.6	18	210	11	40(4080)
CAHF-10	77	8.5	20	254	31	50(5100)
CAHF-12	91	10.2	24	304	34	58(5916)
CAHF-15	118	10.6	23	381	30	71(7240)
CAHF-18	118	10.3	23	450	30	71(7240)
CAHF-21	140	10.3	23	530	87	90(9177)
CAHF-24	165	10.4	23	610	110	90(9177)

Spec Model	Max. static gripping force KN(kgf)	Max. Permissible speed r.p.m	weight(With standard soft jaws)	Gd moment of inertia	matching cylinder
CAHF-08	94(9597)	5000	23.6	6.90(0.71)	YAH-08
CAHF-10	125(12740)	4200	40	12.65(1.29)	YAH-10
CAHF-12	147(15000)	3300	64	30.00(3.06)	YAH-12
CAHF-15	180(18355)	2500	127	93.55(9.54)	YAH-15
CAHF-18	180(18355)	2000	178	187.30(19.1)	YAH-15
CAHF-21	234(23861)	1700	246	362.83(37.0)	YAH-21
CAHF-24	234(23861)	1400	304	660.94(66.4)	YAH-21

Dimension

Item Model	A	B	F	G	H	J	K	L	M	N Max	N Min	O Max	O Min
CAHF-08	210	91	5	133.4	133.4	52	4-M12	18	25	41.7	37.9	27	10
CAHF-10	254	100	5	171.4	171.4	77	4-M16	24	30	54.5	50.3	31	12
CAHF-12	304	115	6	171.4	171.4	91	4-M16	25	30	67.4	62.3	42	12
CAHF-15	381	133	6	260	260	118	4-M20	28	43	82	76.7	43.8	18.3
CAHF-18	450	133	6	320	235	118	4-M20	28	43	82	76.3	73.8	18.3
CAHF-21	530	140	6	330.2	330.2	140	4-M22	34	60	98.5	93.2	87.5	21.5
CAHF-24	610	149	6	330.2	330.2	165	4-M22	35	60	108.4	103.2	117.5	21.5

Item Model	P Max	P Min	Q	R	S	T	U Max	V	W	X	Y	Z	Cro
CAHF-08	16.5	-1.5		14	20.5	2	M60X2	3-M6	66	30	39	95	170
CAHF-10	9.5	-10.5		16	27	2	M85X2	3-M8	94	30	46	110	220
CAHF-12	10	-14		21	28	2	M100X2	3-M8	108	30	51.8	111	220
CAHF-15	11	-12	62	22	39	5	M130X2	3-M10	139	60	70	165	300
CAHF-18	11	-12	62	22	39	5	M130X6	3-M10	139	60	70	165	380
CAHF-21	11	-12	65	25	39	5	M155X3	3-M12	166	80	73	180	380
CAHF-24	20	-3	65	25	40	5	M175X3	3-M12	187	80	73	180	380
