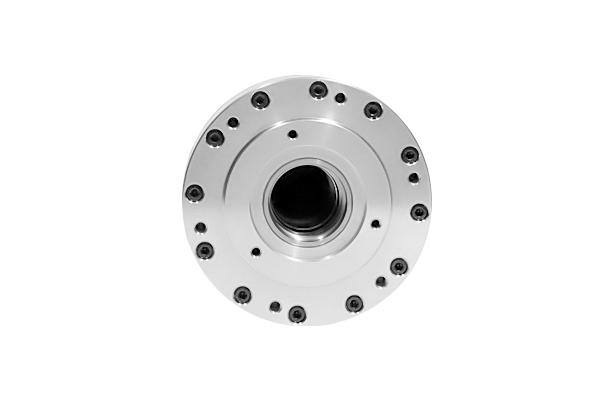

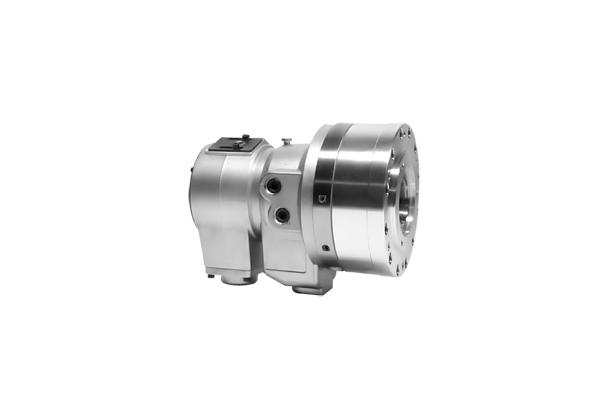

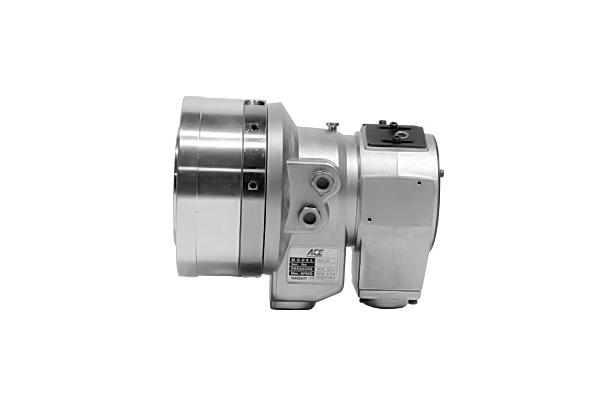

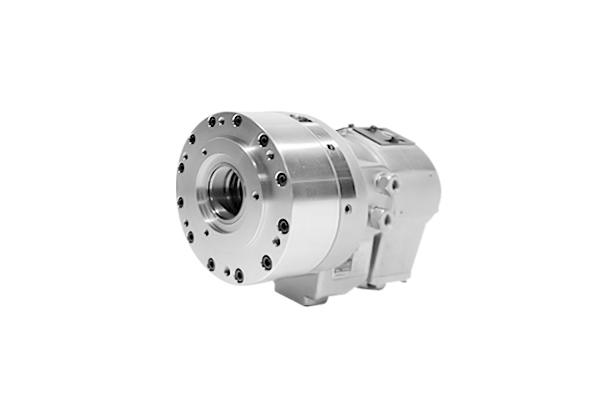

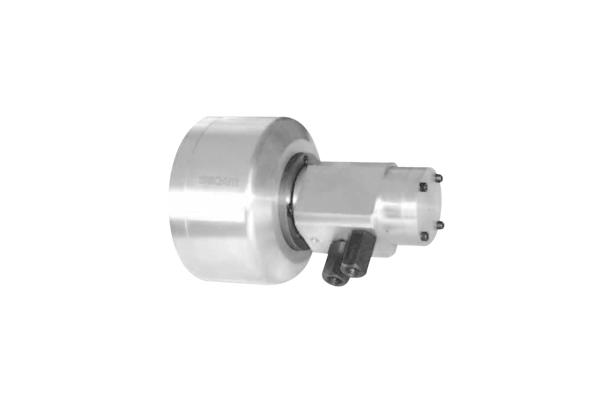

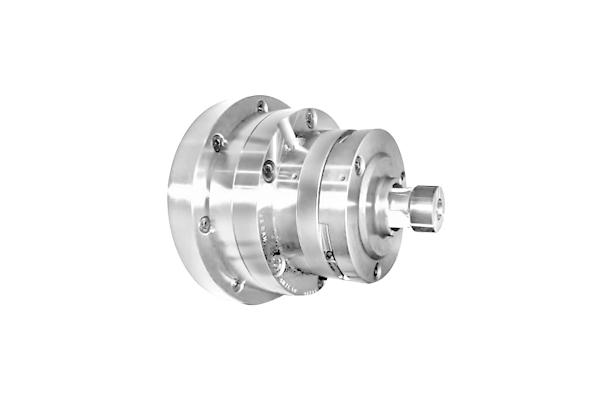

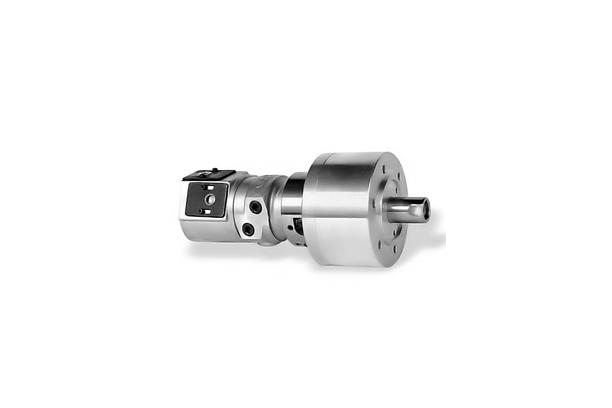

BIG BORE HYDRAULIC CYLINDER (YAH)
Model Name
YAH-05
Series
Hydraulic Cylinder / Big Bore Type
Data
DRAWING-SEOAM-BIG BORE HYDRAULIC CYLINDER-YAH-06
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126679
Product Name
BIG BORE HYDRAULIC CYLINDER (YAH)
Model Name
YAH-05, YAH-06, YAH-08, YAH-10, YAH-12, YAH-15
Size
-
Weight
-
Product Details

Feature

• Safety Guaranteed : It contatins check valves so that pulling force is kept for a certain time upon power failure, securing safety.

• Easy Repair & Check : Thanks to easy access of chuck valves from outside, it is possible to repair and check them, while cylinder is attached to the equipment.

• Leakage prevention design(Patent no.:0172805) : Cylinder body is designed with a leakage prevention structure to totally eliminate the possiblility of leaking.

• Highest Draw Pull : As weight is reduced and draw pull is increased, it gurantees the best machining efficiency and stronger power.



Outward Drawing




Technical data and specifications

Model Description




Specifications

Spec
Model
Order NO.Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiaCylinder diaPiston strokeThru hole dia
YAH-062AH06700012.00.74(0.075)1301546
YAH-082AH08620015.51.96(0.20)1602052
YAH-102AH10470023.03.43(0.35)1852577
YAH-122AH12380031.05.69(0.58)2053091
YAH-152AH1528005214.7(1.5)25523117.5
YAH-052140570006.7(0.24)0.024851031

Spec
Model
Piston surface area extendPiston surface area retractMax draw bar pull extendMax draw bar pull retractMax operation pressureTotal leakageMatching chuck
YAH-06110.699.541.6(4242)37.4(3816)40.83.0CAH-06
YAH-08172.8162.665.0(6627)61.2(6236)40.83.5CAH-08
YAH-10213.3197.980.2(8180)74.5(7590)40.84.2CAH-10
YAH-12251.5235.094.6(9646)88.4(9013)40.84.5CAH-12
YAH-15367.5356.7129.6(13230)125.8(12841)40.87.0CAH-15,18,21,24
YAH-0543.239.813.9(1421)12.8(1309)351.6CAD-05



Dimension

Item
Model
CDEFGHJKL1L2L3L4L5L6L7L8L9L10 Max
YAH-0616313010080655010882.2123.51182.55.5153065113.534
YAH-0819517013090705512091.21301288.55.5153065119.539
YAH-102181901601209580145116.21431295.55.5153565126.544
YAH-1224721518013511095167131.2162.514108.55.5153565141.549
YAH-153072752301701401232121671652099620459.56173.740.5
YAH-051109565-45359055771416-525-58422

Item
Model
L10 MinL11 MaxL12L13L14L15L16MNOPQT1T2T3T4T5
YAH-06191517875361204074504653986-M10X18M55XP2.0M52XP1.5PT-1/2M5X10
YAH-081920186813613040825652601106-M10X18M60XP2.0M52XP1.5PT-1/2M5X10
YAH-10192520595361504010781778513512-M10X18M85XP2.0M84XP2.0PT-1/2M5X10
YAH-1219302301073616640122969110015412-M12X22M100XP2.0M99XP2.0PT-1/2M5X10
YAH-1517.524252.51342021540160134.6117.513519812-M16X32M130XP2.0PT-1/26-M6X10
YAH-05121313776-10050654031-766-M6X14M38XP1.5-PT-1/4M4X7
