Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126676
Product Name

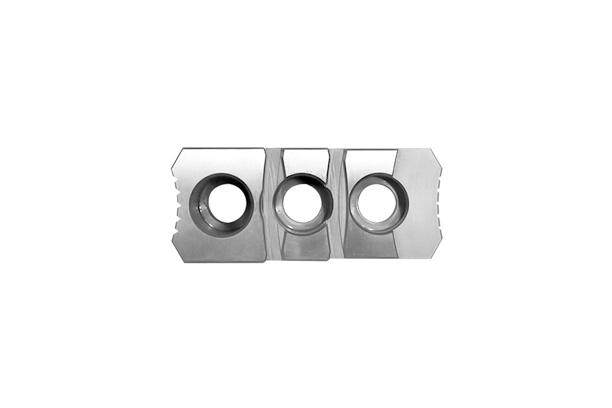

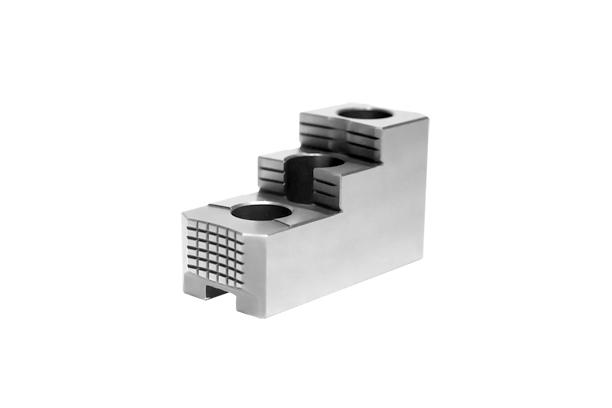

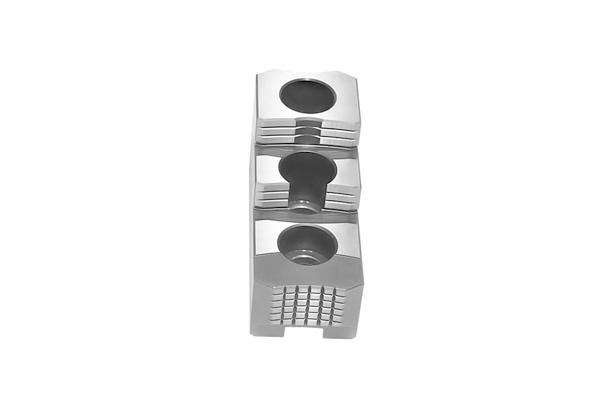

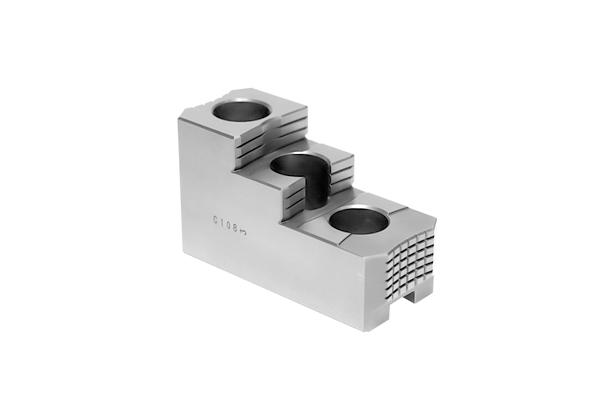

HARD JAW
Model Name
-
Size
-
Weight
-
Product Details
Outward Drawing
Technical data and specifications
Dimension
Item Model | Serration | Matching chuck | A | B | C | D | E | |
| HJ-04A1 | 2 | 1.5X60 ° | 27M/37M-4,5 | 54.3 | 28 | 30 | 11 | 5 |
| HJ-06T1 | 1 | 1.5X60 ° | CAH/CAS/1MA-6 | 75.5 | 31 | 41 | 12 | 5 |
| HJ-06A1 | 2 | 1.5X60 ° | 27M-637M-6 | 65.8 | 35 | 35 | 12 | 5 |
| HJ-08T1 | 1 | 1.5X60 ° | CAH/CGH/CAS-8 | 87 | 39 | 51 | 14 | 5 |
| HJ-08A2 | 2 | 1.5X60º | 27M-8/37M-8 | 83.1 | 40 | 40 | 16 | 5 |
| HJ-10T1 | 1 | 1.5X60º | CAH/CGH/CAS-10 | 101 | 40 | 54 | 16 | 5 |
| HJ-10A1 | 2 | 1.5X60º | - | 98.3 | 45 | 45 | 18 | 5 |
| HJ-12A1 | 2 | 1.5X60º | CAH-12 | 105.8 | 50 | 52 | 21 | 5 |
| HJ-12A2 | 2 | 1.5X60º | 27M/37M-12 | 114.2 | 50 | 55 | 21 | 5 |
| HJ-12T1 | 1 | 1.5X60º | CAS/1MA-12 | 104.4 | 50 | 62 | 18 | 6 |
| HJ-15T1 | 1 | 1.5X60º | - | 159.2 | 62 | 86 | 22 | 8 |
| HJ-15A1 | 2 | 3.0X60º | 1MA-15,18,21 | 153.5 | 65 | 75 | 26 | 8 |
| HJ-15A3 | 1 | 1.5X60º | CAS-15,18 | 149 | 62 | 86 | 25.5 | 5 |
| HJ-21B1 | 2 | 3.0X60º | CAH/CAS-21,24 | 159.5 | 80 | 90 | 25 | 12 |
| HJ-32A1 | 3 | - | CAS-32,32HC | 145 | 70 | 75 | 12.7 | 5 |
| HJ-40A1 | 3 | - | CAS-40,50 | 170 | 90 | 110 | 30 | 6 |
| HJ-40A2 | 3 | - | CAS-40HC,50HC | 222.5 | 80 | 117 | 30 | 8.5 |
Item Model | F | G | H | J | K | L | N | O | |
| HJ-04A1 | 23.7 | 16 | 30.6 | 14 | 9 | 8 | - | - | |
| HJ-06T1 | 30 | 20 | 12 | 17.5 | 11 | 10 | 10 | 15 | |
| HJ-06A1 | 32.7 | 20 | 33.1 | 17.5 | 11 | 11 | 9 | 13 | |
| HJ-08T1 | 27 | 25 | 22 | 19 | 13 | 12 | 12 | 12 | |
| HJ-08A2 | 42.8 | 25 | 40.3 | 20 | 14 | 13 | 12 | 11 | |
| HJ-10T1 | 43 | 30 | 17 | 19 | 13 | 13 | 15 | 15 | |
| HJ-10A1 | 54.3 | 30 | 44 | 23 | 16 | 15 | 17 | 24 | |
| HJ-12A1 | 60.5 | 30 | 45.3 | 25 | 17 | 17 | 30 | 30 | |
| HJ-12A2 | 68.1 | 35 | 46.1 | 26 | 18 | 20 | 18 | 18 | |
| HJ-12T1 | 29.6 | 30 | 30.3 | 23 | 16 | 15 | 25 | 25 | |
| HJ-15T1 | 66 | 43 | 35 | 32 | 21 | 20 | 40 | 40 | |
| HJ-15A1 | 83 | 50 | 70.5 | 32 | 22 | 30 | 44 | 44 | |
| HJ-15A3 | 69 | 43 | 27 | 32 | 21 | 20 | 43 | 38 | |
| HJ-21B1 | 103.48 | 50 | 56.2 | 32 | 22 | 40 | 55 | - | |
| HJ-32A1 | 66 | 76.2 | 79 | 32 | 22 | 32 | 19.03 | - | |
| HJ-40A1 | 110 | 100 | 70 | 40 | 27 | 47 | 19.03 | - | |
| HJ-40A2 | 133 | 114.3 | 89.5 | 40 | 27 | 55 | 19.03 | - |
