Product Name

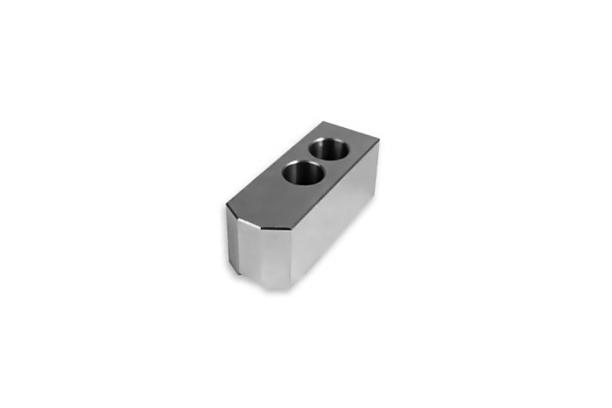

SOFT JAW
Model Name
-
Size
-
Weight
-
Product Details
Outward Drawing
Technical data and specifications
Dimension
Item Model | Serration | Matching chuck | A | B | C | D | E | |
| SJ-04T1 | 1 | 1.5X60 ° | 27M/37M-4,5 | 47.5 | 25 | 25 | 11 | 4 |
| SJ-04T2 | 1 | 1.5X60 ° | 1MA-4 | 54 | 25 | 25 | 10 | 5 |
| SJ-05T1 | 1 | 1.5X60 ° | CAH-5 | 54 | 23 | 25 | 10 | 4 |
| SJ-05A1 | 2 | 1.5X60 ° | 1MA-5 | 58.5 | 25 | 25 | 10 | 5 |
| SJ-06T1 | 1 | 1.5X60 ° | CAH/CA/CGH-6 | 72 | 31 | 31.5 | 12 | 5 |
| SJ-08A1 | 2 | 1.5X60 ° | 27M/37M-8 | 85.5 | 40 | 40 | 16 | 5 |
| SJ-10T1 | 1 | 1.5X60 ° | CAH/CAS/CGH-10 | 110 | 44 | 44.5 | 16 | 5 |
| SJ-10T2 | 1 | 1.5X60 ° | 27M/37M-10 | 108 | 45 | 45 | 18 | 5 |
| SJ-12T1 | 2 | 1.5X60 ° | CAS/1MA12 | 129 | 49 | 49 | 18 | 6 |
| SJ-12A1 | 2 | 1.5X60 ° | CAH-12 | 111 | 49 | 49.5 | 21 | 5 |
| SJ-12A3 | 2 | 1.5X60 ° | 27M/37M-12 | 111 | 50 | 60 | 21 | 5 |
| SJ-15A1 | 2 | 1.5X60 ° | CAH-15,18 | 165 | 59 | 59.5 | 22 | 8 |
| SJ-15A2 | 2 | 3.0X60 ° | 1MA-15,18,21 | 156 | 65 | 70 | 26 | 8 |
| SJ-15A3 | 2 | 1.5X60 ° | CAS-15,18 | 135 | 50 | 59 | 25.5 | 5 |
| SJ-21A1 | 2 | 3.0X60 ° | CAH/CAS-21,24 | 180 | 59 | 59.5 | 25 | 9.5 |
| SJ-21A2 | 2 | 3.0X60 ° | 1MA-21,24 | 180 | 65 | 70 | 26 | 8 |
| SJ-32A1 | 3 | - | CAS-32,32HC | 165 | 75 | 83 | 12.7 | 12.5 |
| SJ-40A1 | 3 | - | CAS-32,32HC | 200 | 98 | 110 | 30 | 6 |
| SJ-40A2 | 3 | - | CAS-40HC,50HC | 270 | 110 | 110 | 30 | 8.5 |
| SJ-06A1 | 2 | 1.5X60° | 27M/37M-6 | 66 | 35 | 35 | 12 | 5 |
| SJ-08T1 | 1 | 1.5X60° | CAH/CAS/CGH-8 | 95 | 37 | 37.5 | 14 | 5 |
Item Model | F | G | H | J | K | L | M | N | |
| SJ-04T1 | 9.5 | 16 | 22 | 14 | 9/8.2 | 16 | 4 | 5.5 | |
| SJ-04T2 | 10 | 14 | 30 | 13.5 | 9 | 14 | 8 | 3 | |
| SJ-05T1 | 11.5 | 14 | 28 | 13.5 | 8.5 | 16.5 | 5 | - | |
| SJ-05A1 | 8 | 19 | 31.5 | 14 | 9 | 14 | - | - | |
| SJ-06T1 | 15 | 20 | 37 | 17.5 | 11 | 19.5 | 12 | 15 | |
| SJ-08A1 | 20 | 25 | 40.5 | 20 | 13.5 | 26 | - | - | |
| SJ-10T1 | 30 | 30 | 50 | 20 | 14 | 28.5 | 15 | 20 | |
| SJ-10T2 | 24 | 30 | 54 | 23 | 16 | 30 | 8 | - | |
| SJ-12T1 | 39 | 30 | 60 | 23 | 16 | 31 | - | - | |
| SJ-12A1 | 21 | 30 | 60 | 25 | 17 | 31.5 | - | - | |
| SJ-12A3 | 25 | 35 | 51 | 26 | 18 | 42 | - | - | |
| SJ-15A1 | 47 | 43 | 75 | 32 | 22 | 36 | - | - | |
| SJ-15A2 | 34 | 50 | 72 | 32 | 22 | 50 | - | - | |
| SJ-15A3 | 26 | 473 | 66 | 32 | 21 | 39 | - | - | |
| SJ-21A1 | 40 | 60 | 80 | 32 | 22 | 36 | - | - | |
| SJ-21A2 | 34 | 50 | 96 | 32 | 22 | 50 | - | - | |
| SJ-32A1 | 21.9 | 76.2 | 66.9 | 32 | 22 | 54 | 19.03 | - | |
| SJ-40A1 | 35 | 100 | 65 | 40 | 27 | 86 | 19.03 | - | |
| SJ-40A2 | 48.8 | 2-76.2 | 68.8 | 40 | 27 | 85 | 19.03 | - | |
| SJ-06A1 | 14.5 | 20 | 31.5 | 17.5 | 11 | 22 | - | - | |
| SJ-08T1 | 20 | 25 | 50 | 20 | 14 | 22.5 | 12 | 20 |
