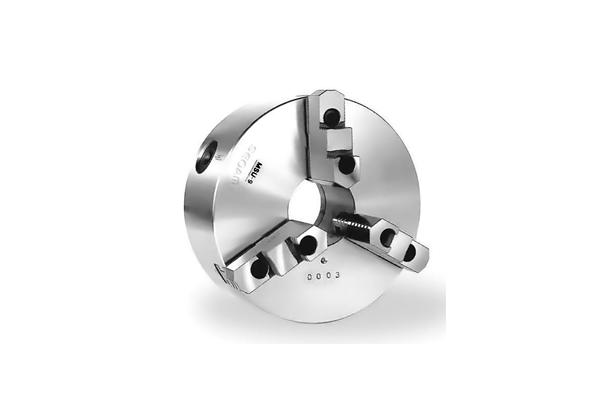

TWO PIECE JAW SCROLL CHUCK (MSU)
Model Name
MSU-10
Series
Chuck / Manual Type
Data
DRAWING-SEOAM-TWO PIECE JAW SCROLL CHUCK-MSU-10
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126673
Product Name
TWO PIECE JAW SCROLL CHUCK (MSU)
Model Name
MSU-10, MSU-12, MSU-20, MSU-7, MSU-9
Size
-
Weight
-
Product Details

Features

• Jaw Detachable Scroll Chuck : It has improved structure from standard scroll chuck model so that jaws can be detached, and thus the scope of use has been enlargerd.

• Easy in Precise Processing : It is good in exchanging preciseness by grinding serration part, and is very easy in precise processing since it use fromed soft jaws.

• Contribution for Increasing Performance : With hard jaws attached to the entity, you can perform internal/external clamping(circular sticks and ring type) without replacing jaws so the
                                                                           the performance is improved.

• High Quality, Long Durability : High quality casting body prevents the stress and deformation, and since the major improved and extended.

• Compatibility : Attached parts, specification and size are the smae with MS Type, and the Jaw configuration is improved to increase the work performance. Jaws are easy yo replace,
                            and the major parts of scroll chuck and jaws are compatible with MS's so that the work scrope is wide.
                            Uniformity in quality and the exact size management make the exchange of major parts possible.

• Parts : Hard jaws are attached to the chuck and soft jaws, fastening handles and mounting screws are included as standard parts.
              Additional soft jaws, hard jaws, handles and MS Type internal and external jaws can be purchased separately.



Outward Drawing





Technical data and specifications

Model description




Specifications

Spec
Model
Order NO.Thru-hole(Diameter) mmMax. Permissible speed r.p.mweight(With standard soft jaws)Chuck size
MSU-701507E55350013190
MSU-901509E70290022232
MSU-1001510E85250029273
MSU-1201512E96320038310
MSU-2001520E850156500

Spec
Model
Gripping forceGripping dia external MaxGripping dia external MinGripping dia internal MaxGripping dia internal Min
MSU-73600180462170
MSU-93900220570210
MSU-104500260580250
MSU-1254003001090290
MSU-20665046145155453



Dimension

Item
Model
ABCDEF
MSU-7190761721555511
MSU-9232842101907012
MSU-10273872502308512
MSU-12310962852609614
MSU-2050014323530017719

Item
Model
GHIJK
MSU-7538.33-M108828
MSU-9648.93-M1210031.5
MSU-10652.23-M1211035
MSU-12752.83-M1212540
MSU-2018906-M2016155
