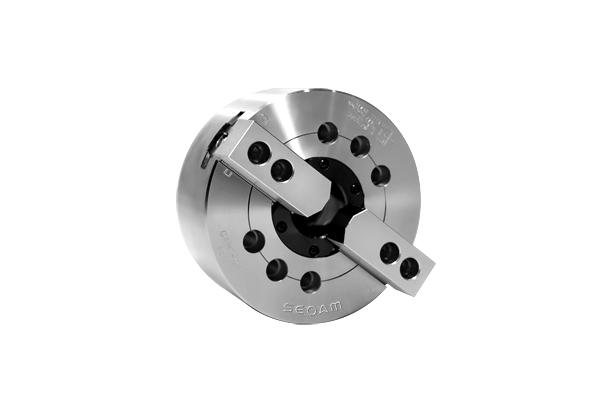

Product Name 2-JAW GREAT BORE POWER CHUCK_ SHORT TAPER (CGHTA)
Model CGHTA-08
Series Chuck / Big Bore Type
Catalog DRAWING-SEOAM-2-JAW GREAT BORE POWER CHUCK_ SHORT TAPER-CGHTA-08.pdf
Product Description

Features

• High Performance and High Accuracy : It has the same structure as CGHT power chuck, and guarantees excellent performance and quality. Attachment part and changable parts are
                                                                      compatible each other.

• High Performance and High Accuracy : Shortening of changing time - Time of changing chuck can be mnimized as run-out accuracy is kept upon attachment.

• Convenient Attachment Option : Because adapters suitable to various spindle specifications can be manufactured and attached, the scope of application is extensive.



Outward Drawing




Technical data and specifications


Model Description




Specifications

Spec
Model
Order NO.Spindle nose NO.Thru-hole(Diameter) mmJaw stroke(Diameter) mmPlunger stroke mmGripping MaxGripping MinMax. permissible input force KN(kgf)
CGHTA-081GHTA08A2-6667.6182101138(3900)

Spec
Model
Max. static gripping force KN(kgf)Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiamatching cylinderMatching hard jawMatching soft jaw
CGHTA-0894(9597)5000235.59(0.57)YSGH-08HJ-08T1SJ-08T1



DIMENSION

Item
Model
ABCDEFGHJKLMN MaxN Min
CGHTA-08210111170106.375265150133.4666-M12212546.242.4

Item
Model
O MaxO MinP MaxP MinQRSTU MaxVWXYZ
CGHTA-0823.2510.253315391420.52M75X2.03-M688303995
