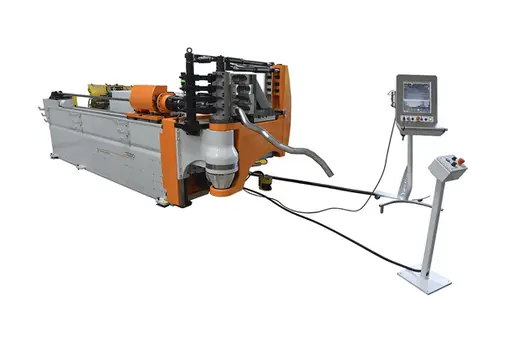

CNC Tube Bender TE Large

Model

Series

Tube Bending Machines

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Range : Tube bending machines
Technical Presentation of the CNC tube bender TE Large

Main features
  • From .80 to 6x.12″ / 20 to 152×3 mm
  • Applications example : Automotive H.V.A.C.A., structure
  • Chassis parts, exhaust system
  • Hydroformed parts outlines
  • Electric bending machines
  • Stackable multi-radii
  • Draw bending with and without mandrel and roll bending
  • Fully automated systems for quick tooling change over
  • Curved bending
  • Easy integration in automated production cells
  • Possibility to combine bending with complementary operations
 Man / Machine Interface
  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion



  TE50I TE63/TE63LR TE80 TE102 TE152
Max tube ø 2x.08" at 85 Ksi / 50x2 mm at 600N/mm² 2.5x.08" at 58 Ksi / 76x2 mm at 400N/mm² 3.2x.08" at 58 Ksi / 80x2 mm at 400N/mm² 4x.08" at 85 Ksi / 102x2 mm at 600N/mm² 6x.08” at 85 KSI/ 152x2 mm at 600N/mm²
Tube length 120"/3000 mm 120" / 3000 mm 120" / 3000 mm 120" / 3000 mm 120" / 3000 mm
Max bending radius 11.8 / 300 mm 11" / 280 mm 11.8" / 300 mm 11.8" / 300 mm 19.7" / 500 mm
Bending tools 6
Left or right		 4
Left or right		 5 (in option)
Right		 3 (optional)
Right		 1
right



Example of parts made with the CNC tube bender TE Large

Download

Catalog-Numalliance-CNC Tube Bender TE Large
