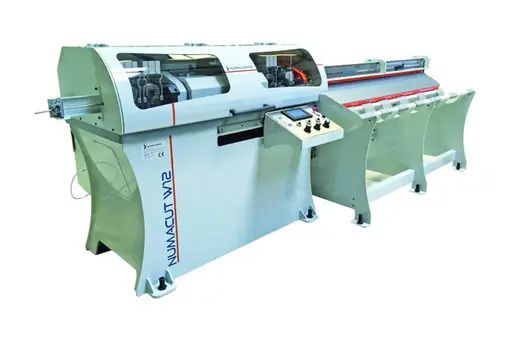

CNC Wire Cutting Machine Numacut
Model
Series
Wire and Tube Cutting Machines
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
Range : Wire straightening and cutting machines
Technical Presentation of the wire cutting machine Numacut
Machine dedicated for straightening and cutting of wire in coil form
Main features
|
Man / Machine Interface
|
| NUMACUT W05 | NUMACUT W08 | NUMACUT W12 | |
|---|---|---|---|
| Wire capacity up to 550 N/mm² | From 0.04 to 0.20" | From 0.12 to 0.31" | From 0.20 to 0.47" |
| Shortest cutting length with fixed stop | 3" | 3" | 3" |
| Shortest cutting length without fixed stop | fil ø x 1,5 | fil ø x 1,5 | fil ø x 1,5 |
| Power | 25 kW | 25 kW | 25 kW |
| Machine footprint | 165 x 69 x 59" | 165 x 69 x 59" | 165 x 69 x 59" |
| Weight | 2000 kg | 2000 kg | 2000 kg |
